OmniVision OS08A10 · 8.3MP 1/1.8" rolling-shutter CMOS image sensor
OS08A10 Sensor Specifications & Compatible M12 and C-Mount Lenses

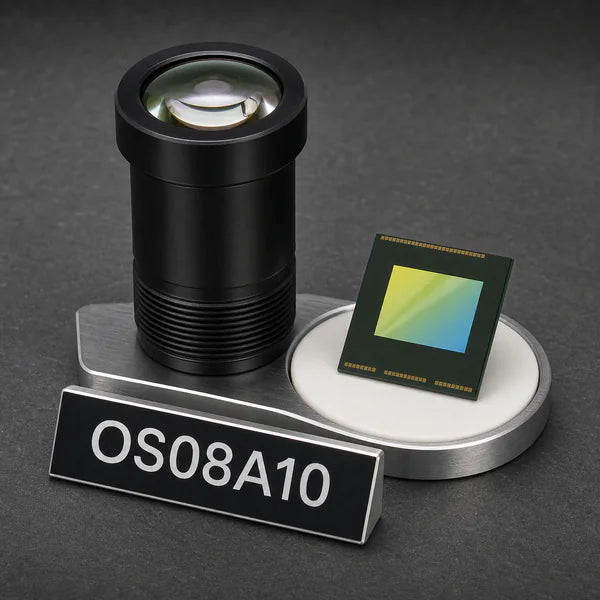

OS08A10 is an OmniVision 1/1.8-inch rolling-shutter CMOS image sensor from the PureCel family, a common choice for 4K security and broadcast cameras. It outputs 3840x2160 (8.3MP) UHD on 2um pixels at 60 fps over MIPI CSI-2 or LVDS. Commonlands matches M12 Lenses and C-Mount Lenses to its 8.81mm image circle and supplies the calculated horizontal, vertical, and diagonal field of view.
OS08A10 specifications
| Part number | OS08A10 |
|---|---|
| 제조사 | 옴니비전 |
| Family | PureCel |
| 결의안 | 3840x2160 (8.3 MP) |
| 광학 형식 | 1/1.8인치 |
| Active area | 7.68 × 4.32 mm |
| Sensor diagonal | 8.81 mm |
| 픽셀 크기 | 2.0 µm |
| 셔터 | 구르기 |
| 최대 프레임 속도 | 60 fps |
| 인터페이스 | MIPI CSI-2 / LVDS |
| Color / mono | Color |
Manufacturer datasheet: OmniVision OS08A10 product page
Lens selection for the OS08A10 with calculated field of view
Each field of view below is calculated for the OS08A10 active area (7.68 × 4.32 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists focal length, mount, aperture (F#), and coverage. Follow the product links for distortion, ingress protection, dimensions, and resolution specifications. Coverage compares the lens image circle with the 8.81 mm sensor diagonal. Entries marked Circular image do not cover the full diagonal; part of the sensor lies outside the image circle. Run working-distance and object-size numbers through the field of view calculator.
Engineering picks for the OS08A10
- Best ~30° HFoV: Telephoto 14.2mm M12 Lens (CIL142) (14.2 mm, f/2.6). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the OS08A10: 30° H × 17° V (34° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: Low Distortion 6.2mm M12 Lens (CIL062) (6.2 mm, f/2.8). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the OS08A10: 64° H × 38° V (71° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Wide-Angle 3.9mm M12 Lens (CIL339) (3.9 mm, f/1.6). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the OS08A10: 115° H × 64° V (132° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Lowest distortion: Low Distortion 4.2mm M12 Lens (CIL042) (4.2 mm, f/1.9). Why: measured -1% TV distortion, the flattest image among covering lenses. Field of view on the OS08A10: 85° H × 55° V (93° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the OS08A10: 51° H × 30° V (58° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Find a lens for the OS08A10 in the M12 Lens collection or the C-Mount Lens collection. The covering options below run from 1.5 mm to 100 mm focal length and span 4° to 190° horizontal field of view on the OS08A10 active area.
| Commonlands Lens | Focal Length | 마운트 | F# | Horizontal FoV | Vertical FoV | Diagonal FoV | Coverage |
|---|---|---|---|---|---|---|---|
| Fisheye 1.5mm M12 Lens (CIL215) | 1.5 mm | M12 | f/2 | 190° | 190° | 190° | Circular image |
| Fisheye 2.7mm M12 Lens (CIL227) | 2.7 mm | M12 | f/2.5 | 180° | 94° | 196° | Circular image |
| Low Distortion 3mm M12 Lens (CIL030) | 3 mm | M12 | f/2.1 | 110° | 74° | 119° | Covers |
| Fisheye 3.1mm M12 Lens (CIL231) | 3.1 mm | M12 | f/1.9 | 153° | 82° | 181° | Covers |
| Wide-Angle 3.5mm M12 Lens (CIL334) | 3.5 mm | M12 | f/2.2 | 135° | 72° | 159° | Covers |
| Wide-Angle 3.9mm M12 Lens (CIL339) | 3.9 mm | M12 | f/1.6 | 115° | 64° | 132° | Covers |
| Wide-Angle 4mm M12 Lens (CIL340) | 4 mm | M12 | f/2 | 110° | 62° | 126° | Covers |
| 4mm C-Mount Lens (CIL529) | 4 mm | C-마운트 | f/2.8 | 91° | 58° | 99° | Covers |
| Low Distortion 4.2mm M12 Lens (CIL042) | 4.2 mm | M12 | f/1.9 | 85° | 55° | 93° | Covers |
| Wide-Angle 4.5mm M12 Lens (CIL344A) | 4.5 mm | M12 | f/2.7 | 99° | 55° | 115° | Covers |
| 4.9mm C-Mount Lens (CIL505) | 4.9 mm | C-마운트 | f/2.2 | 92° | 51° | 106° | Covers |
| Low Distortion 5.2mm M12 Lens (CIL052) | 5.2 mm | M12 | f/3.4 | 73° | 45° | 81° | Covers |
| Wide-Angle 5.8mm M12 Lens (CIL358) | 5.8 mm | M12 | f/1.9 | 81° | 43° | 95° | Covers |
| Low Distortion 5.9mm M12 Lens (CIL059) | 5.9 mm | M12 | f/1.7 | 68° | 41° | 76° | Covers |
| Low Distortion 6.2mm M12 Lens (CIL062) | 6.2 mm | M12 | f/2.8 | 64° | 38° | 71° | Covers |
| 8mm C-Mount Lens (CIL521) | 8 mm | C-마운트 | f/1.5 | 51° | 30° | 58° | Covers |
| 8.1mm M12 Lens (CIL083) | 8.1 mm | M12 | f/2.8 | 51° | 30° | 57° | Covers |
| 8.2mm M12 Lens (CIL085) | 8.2 mm | M12 | f/3 | 50° | 30° | 57° | Covers |
| 8.5mm C-Mount Lens (CIL508) | 8.5 mm | C-마운트 | f/2.4 | 50° | 29° | 56° | Covers |
| 9.1mm M12 Lens (CIL092) | 9.1 mm | M12 | f/2.6 | 47° | 27° | 53° | Covers |
| Telephoto 12mm M12 Lens (CIL122) | 12 mm | M12 | f/2 | 36° | 21° | 42° | Covers |
| 12mm C-Mount Lens (CIL552) | 12 mm | C-마운트 | f/2.8 | 35° | 20° | 40° | Covers |
| Telephoto 14.2mm M12 Lens (CIL142) | 14.2 mm | M12 | f/2.6 | 30° | 17° | 34° | Covers |
| Telephoto 16mm M12 Lens (CIL160) | 16 mm | M12 | f/1.9 | 27° | 15° | 31° | Covers |
| 16mm C-Mount Lens (CIL553) | 16 mm | C-마운트 | f/2.8 | 27° | 15° | 31° | Covers |
| Telephoto 21.6mm M12 Lens (CIL121) | 21.6 mm | M12 | f/2.8 | 20° | 11° | 23° | Covers |
| Telephoto 25mm M12 Lens (CIL250) | 25 mm | M12 | f/2 | 17° | 10° | 20° | Covers |
| 25mm C-Mount Lens (CIL554) | 25 mm | C-마운트 | f/2.6 | 17° | 10° | 20° | Covers |
| Telephoto 35mm M12 Lens (CIL350) | 35 mm | M12 | f/2.4 | 13° | 7° | 14° | Covers |
| 35mm C-Mount Lens (CIL555) | 35 mm | C-마운트 | f/2.6 | 13° | 7° | 14° | Covers |
| Telephoto 50mm M12 Lens (CIL051) | 50 mm | M12 | f/2.8 | 9° | 5° | 10° | Covers |
| 50mm C-Mount Lens (CIL556) | 50 mm | C-마운트 | f/2.8 | 9° | 5° | 10° | Covers |
| Telephoto 75mm M12 Lens (CIL076) | 75 mm | M12 | f/3.4 | 6° | 3° | 7° | Covers |
| 75mm C-Mount Lens (CIL557) | 75 mm | C-마운트 | f/3 | 6° | 3° | 7° | Covers |
| Telephoto 100mm M12 Lens (CIL100) | 100 mm | M12 | f/3.6 | 4° | 2° | 5° | Covers |
Covers in the table means the lens image circle is at least as large as the 8.81 mm sensor diagonal. Confirm corner illumination and MTF at your aperture, wavelength, and working distance. A complete circular fisheye image fits inside the sensor only when its diameter is no larger than the sensor's short side. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the OS08A10
Start from the field of view and working distance your application needs. Confirm that the lens image circle covers the active sensor diagonal and that the mount provides the required focus travel and rear clearance. A lens megapixel rating alone does not establish resolution on this sensor. Compare measured MTF at the spatial frequencies your task needs, at the intended aperture, wavelength, distance, and field position, accounting for the 2.0 µm pixel pitch. Estimate framing with the Commonlands field of view calculator.
Sourcing a camera module around the OS08A10? Commonlands manufactures M12 lenses and C-mount lenses and ships from San Diego, with same-day shipping on in-stock lenses ordered before 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the OS08A10 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned OS08A10 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
OS08A10 lens and camera module FAQ
What lens fits the OS08A10 sensor?
A lens match requires sufficient image-circle coverage, suitable MTF, and mechanical clearance. Use the coverage column and calculated field of view to shortlist lenses, then verify the operating conditions on each product page.
What is the OS08A10 sensor size?
The OS08A10 is a 1/1.8" format sensor with a 7.68 × 4.32 mm active area and a 8.81 mm diagonal, built on 2.0 µm pixels at 3840x2160 resolution.
Does Commonlands build a custom MIPI camera module for the OS08A10?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the OS08A10 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your OS08A10 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
