AR0821 및 IMX226과 같은 최대 1/1.7" 센서용 3mm 광각 무왜곡 렌즈
왜곡률 최소화 3.0mm M12 렌즈

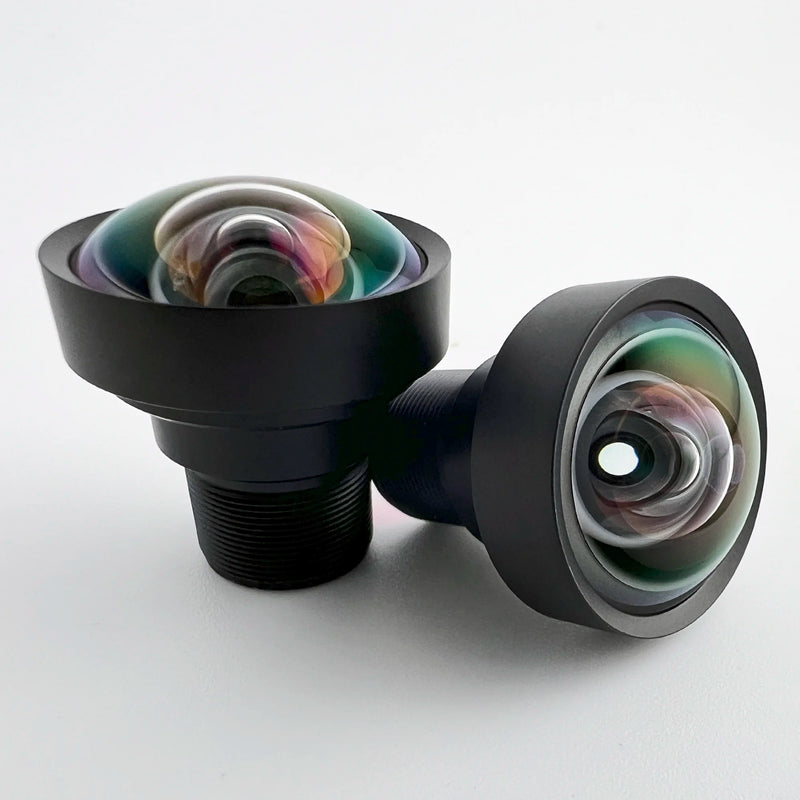

CIL030은 1/1.7" 센서에서 115°의 수평 화각을 제공하는 저왜곡 3mm M12 렌즈입니다. 이 렌즈는 AR0821 및 IMX226과 같은 최대 1/1.6" 포맷 타입에 적합합니다. 빠른 F/2.1 조리개와 낮은 왜곡이 결합되어 로봇 공학 및 컴퓨터 비전 애플리케이션에 적합합니다.
In stock — orders before 12 PM PST ship same day
렌즈 기능
8MP+ 해상도
Good MTF up to 9.8mm image circle
왜곡률 최소화
Low Distortion Wide-Angle up to 1/1.7″ format type.
광학 및 기계 사양 테이블
| 렌즈 파라미터 | 성능 상세 정보 |
|---|---|
| 부품 번호 | CIL030 |
| EFL | 3.0 |
| F# | 2.1 |
| 해상도 | 8MP, 2.1um |
| 시야각 | 115° @ 8.5mm Image Circle — Calculate FoV for your sensor |
| 이미지 서클 | 8.8mm |
| 왜곡 | -5.3% TV (4:3) |
| 무게 | 12.7g |
| IR 컷오프 필터 | P/N (포함): CIL030-F2.1-M12A650 P/N (미포함): CIL030-F2.1-M12ANIR |
| 구조 | 4G4P, AL6061 |
기계적 변형들
| 변형 | 설명 |
|---|---|
| M12A | 보호 등급 없음, 렌즈 1의 표면 1에 BBAR 코팅, AL6061 캡+배럴 |
기계 레이아웃
카메라 기계적 호환성 표*
| 카메라/마운트 | 호환성 |
|---|---|
| Commonlands CLA024 | CLA024 |
| e-con Systems S-Mount | 8mm - 13mm 높이 홀더 |
| Allied Vision Alvium S-Mount | 예 |
| FLIR Blackfly S 보드 | 예 |
| iDS uEye LE | Rev1.1: Yes, Rev1.2: Must use PN ending C-NO |
| The Imaging Source M12 | 예 |
| Basler Dart S-마운트 | 예 |
*카메라 제조업체에서 제공하는 표준 M12x0.5 렌즈 마운트를 전제로 한 기계적 호환성입니다. 광학 호환성은 별도로 확인하시기 바랍니다.
Frequently asked questions
What sensors work with the CIL030 3mm M12 lens?
The CIL030 supports up to 1/1.7″ sensors, including the AR0821 and IMX226, and it resolves 8MP at 2.1μm pixel pitch. The 8.8mm image circle covers those formats with good relative illumination to the corners.
How much distortion does the CIL030 wide-angle lens have?
The CIL030 has -5.3% TV distortion measured in a 4:3 aspect ratio. That is low enough for many computer vision applications, but if the job needs even less distortion, the CIL034 at 3.2mm is the stronger choice.
What is the CIL030 optical construction?
The CIL030 uses a 4G4P hybrid design, with 4 glass and 4 plastic elements, in an AL6061 aluminum barrel. That mix keeps cost down while still delivering 8MP resolution and good MTF across the 9.8mm image circle.
Which camera boards are compatible with the CIL030?
The CIL030 works with Commonlands CLA024 holders, e-con Systems boards with an 8–13mm mount, Allied Vision Alvium, FLIR Blackfly S, iDS uEye LE, The Imaging Source M12, and Basler Dart S-mount cameras.
Does the CIL030 have an IR cut filter option?
Yes. You can order CIL030-F2.1-M12A650 with a built-in 650nm IR cut filter for daylight imaging, or CIL030-F2.1-M12ANIR without a filter for NIR-sensitive or multispectral applications.
Does the CIL030 3mm M12 lens ship same day from the US?
Yes. Commonlands ships all in-stock lenses same day from San Diego, California for orders placed before 12 PM PST. Contact us for volume pricing on the CIL030.
