M12 렌즈는 S-마운트 렌즈라고도 합니다. 이 작은 렌즈는 직경 12mm의 나사산을 가지고 있습니다.
M12 렌즈는 보드 카메라를 쉽게 맞춤 설정할 수 있도록 합니다.

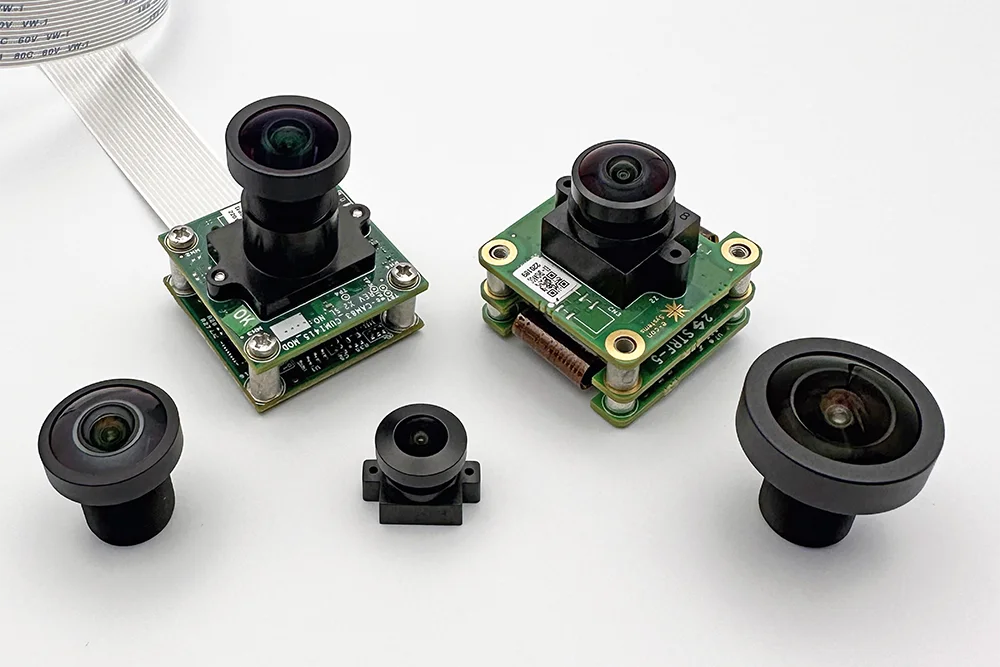

Miniature M12 lenses are everywhere nowdays: in your car, at retail checkout QR code scanners, in surveillance cameras, as eyes for robotics, in medical applications, and anywhere you can think a camera would be. The world of smart devices and robots has to see and miniature lenses are a core component!
An M12 Lens is also known an S-Mount Lens. These lenses come in an endless number of specifications, shapes, and sizes. This provides engineers the ability to easily customize miniature cameras based on their requirements and CMOS Sensor selection.
For example, M12 lenses can have different fields of view, MTF, F#s, distortion, ingress protection, barrel material, chief ray angle, filters, etc... The resolution of M12 lenses varies from VGA to 20MP depending on it's as-designed optical prescription and as-manufactured opto-mechanical tolerances.
M12 threaded lenses can be a starting point to prototype for higher precision Active Alignment cameras which use multiple degrees of freedom to align a lens to a sensor.
There are also other types of "M" threaded lenses such as M7, M8 lenses. The difference between an M8 lens and M12 lens is that an M8 lens has an 8mm diameter thread, where the M12 lens has a 12mm diameter thread.
M12 렌즈 나사산은 "표준화"되었지만 실제로는 그렇지 않습니다....
I do not know where the term S-Mount camera originated from, but these refer to the same type of lens.
My best guess is that the term S-Mount means "Short Mount" with origins from the C-Mount, F-Mount, etc... This came from the C Short-Mount "CS-Mount" for the short-mount variant (12.5mm flange height) of the C-Mount with 17.5mm flange height. Contact me with your thoughts as I'm open to your opinion!
This term "S-Mount" leads people to believe that the M12 lens type is a standard mount like the C-Mount, when in fact is isn't. Not all M12 lenses can be used with every M12 lens mount! Read our blog post "intro to lens mounts" for more information.
You need to consider other factors such as lens Mechanical Back Focal Length, lens diameter, and lens thread position to ensure that an M12 lens will work with a given M12 lens holder.

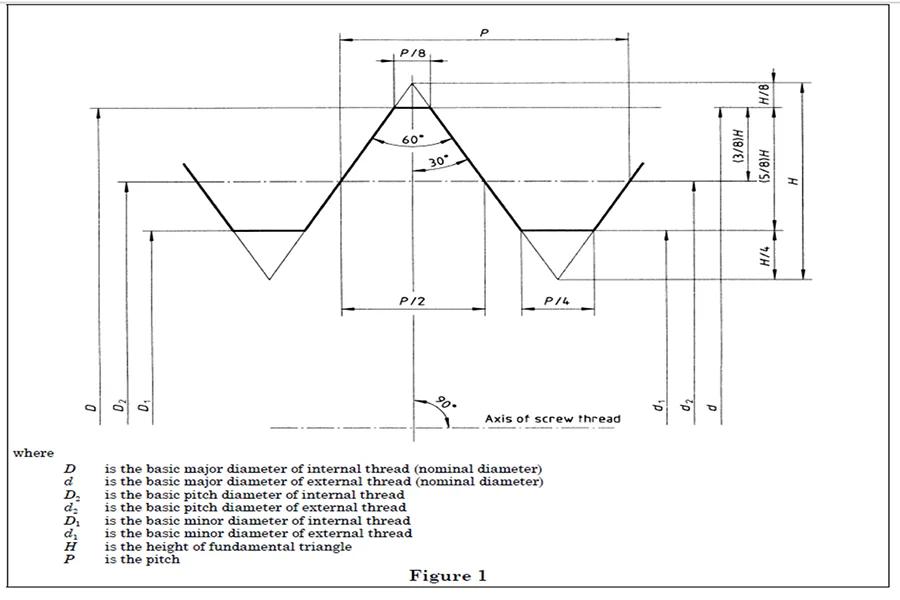

M12 렌즈는 직경이 12mm이지만, 나사산 정점에 대한 기본 삼각형 때문에 정확히 12.0mm는 아닙니다!
Thread nominal dimensions are specified in ISO 68-1: ISO general purpose screw threads — Basic profile — Part 1: Metric screw threads from the International Standards Organization.
After factoring in the height of fundamental triangle, you can calculate that the real diameter of M12x0.5 lenses is <=11.9mm.
M12x0.5 스레드 공차를 정확하게 맞추십시오.
M12 lens tolerances can be calculated using the International Standards Organization's ISO965-1 : ISO general purpose metric screw threads - Tolerances.
Unfortunately, these are not explicitly calculated in any international standard defining screw threads. This frequently leads to improper torque between the M12 lens and lens mount.
Improper torque between a lens and lens mount threads will introduce image plane tilt, and make the corner(s) or side(s) of your image blurry!
So, I've gone ahead and made an easy to use look up table with the proper references included within the excel document. Please refer to the below when measuring
Commonlands는 OEM 고객을 위해 토크 매칭 사전 스레드 M12 렌즈 및 렌즈 마운트를 제공합니다(5,000개 이상).
Once you've found an M12 lens that works for your camera, we can match any of our lenses to our lens holders. Then, we pre-thread these together to achieve a set torque value.

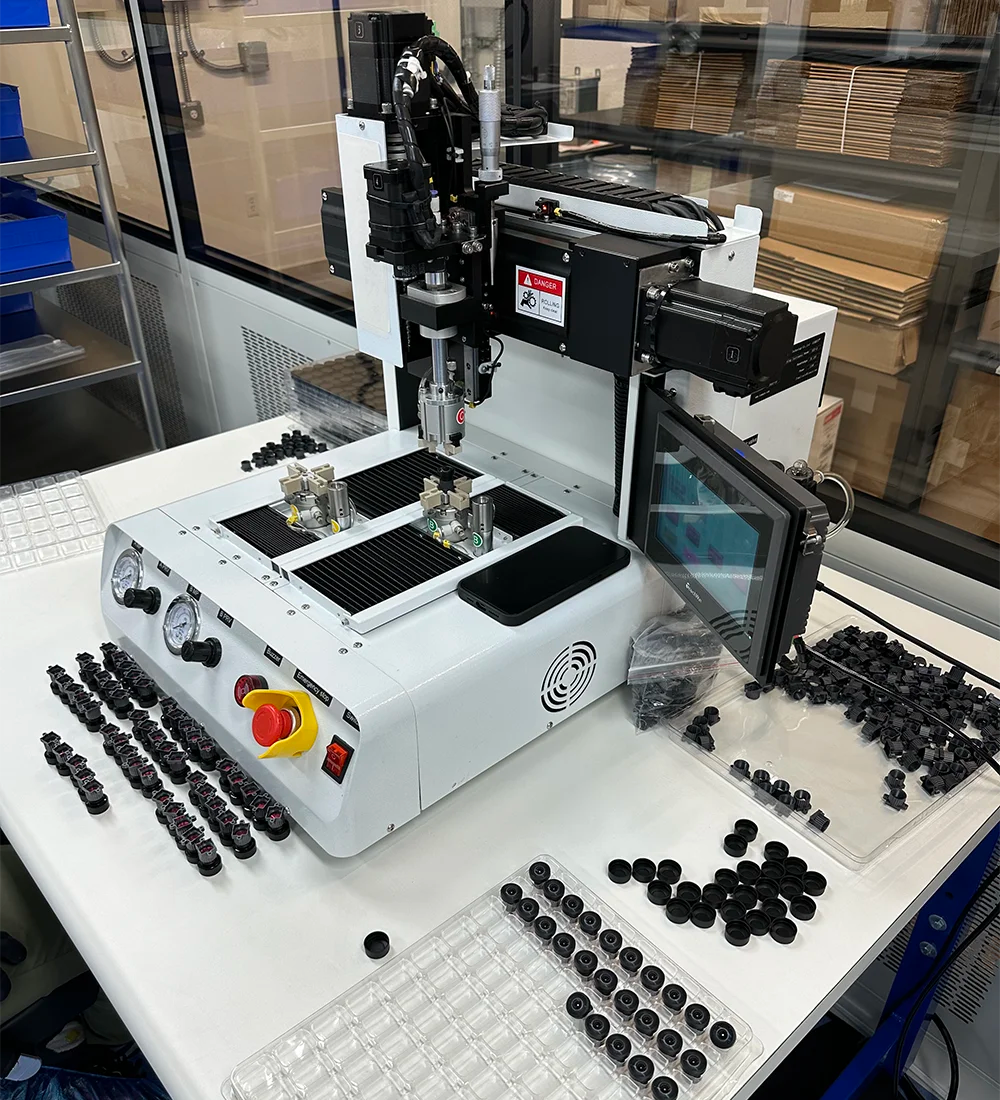

Here is an example of a semi-automated lens to lens mount assembly machine that is in our Class 100~1000 cleanroom in San Diego, California.
