IMX264 및 IMX547과 같은 최대 2/3" 센서용 8mm C-마운트 렌즈

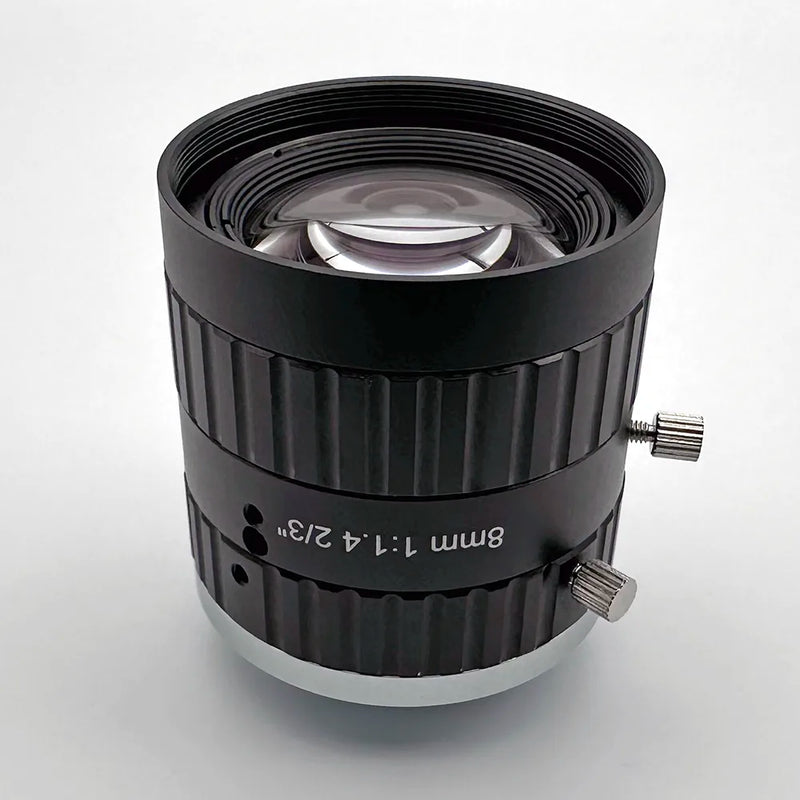

8mm C-마운트 렌즈 2/3" 5MP
CIL521-F1.5-CMANIR은 3.45um 픽셀 피치를 가진 최대 5MP 2/3" 센서용 고속 8mm C-Mount 렌즈입니다. 조리개는 F/1.5에서 F/16까지 조절 가능하며, 최소 작동 거리는 100mm입니다.
In stock — orders before 12 PM PST ship same day
렌즈 기능
낮은 F#
A fast maximum F# of F/1.5 for demanding high speed machine vision applications.
광학 및 기계 사양 테이블
| 렌즈 파라미터 | 성능 상세 정보 |
|---|---|
| 부품 번호 | CIL521 |
| EFL | 8.0 |
| F# | 1.5 |
| 해상도 | 5MP, 3.45μm pixel pitch |
| 시야각 | 67° @ 11mm — Calculate FoV for your sensor |
| 이미지 서클 | 11.4mm |
| 왜곡 | '<1%% from Rectilinear |
| 무게 | 110g |
| IR 컷오프 필터 | M37x0.5 |
| 구조 | All Glass |

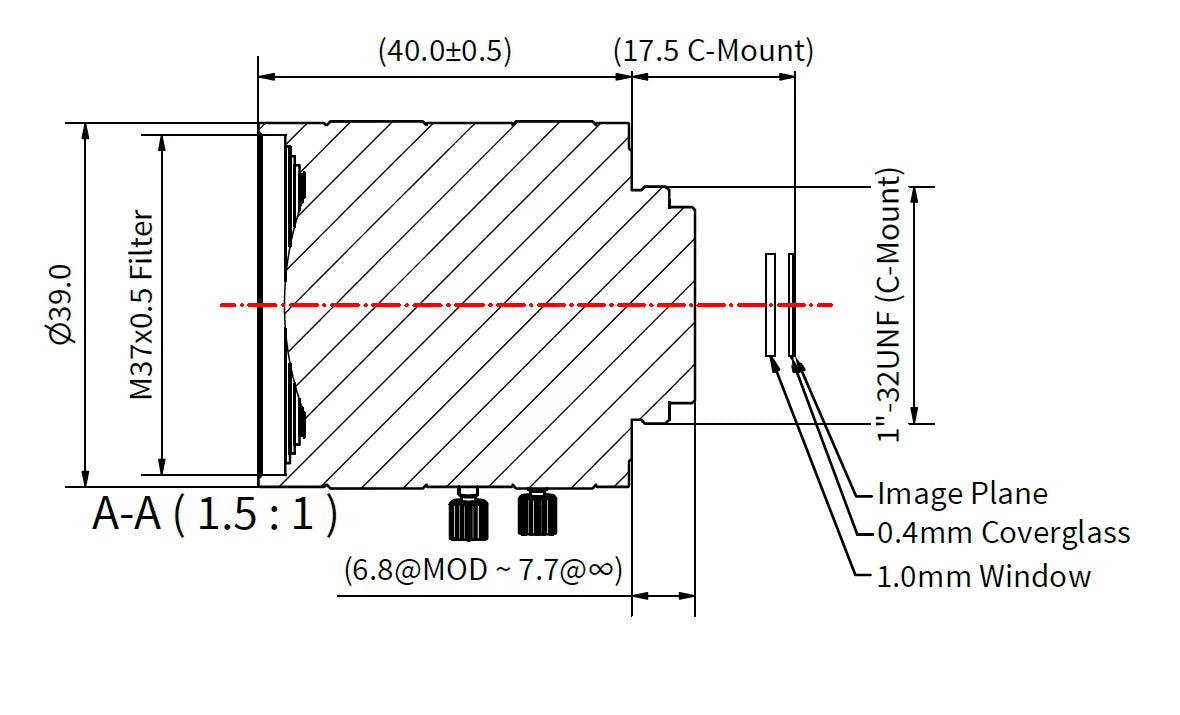

기계 레이아웃
Frequently asked questions
What resolution does the CIL521 8mm C-mount lens support?
The CIL521 resolves 5MP at 3.45µm pixel pitch on 2/3″ sensors like the IMX264 and IMX547. At F/2.8, it handles 2.74µm pixel pitch for higher density sensors.
What is the difference between CIL521 CMA and CMR variants?
The CMA variant has an adjustable aperture from F/1.5 to F/16 through a manual iris ring. The CMR variant ships with a fixed aperture, and you choose F/1.5, F/2.0, or F/2.8 at order time. The fixed aperture keeps production settings from drifting.
How much distortion does the CIL521 have?
Distortion is less than 1% from rectilinear. That level is low enough for most automated inspection and machine vision work without software correction.
What is the CIL521 minimum working distance?
The minimum working distance is 100mm. That is closer than most 8mm C-mount lenses, which usually start at 150mm or more, so the CIL521 fits better in tight enclosures.
Does the CIL521 ship same day from the US?
Yes, Commonlands ships in-stock lenses same day from San Diego, California for orders placed before 12 PM PST.
Can I get a 3D model or mechanical drawing for the CIL521?
Yes, a 3D interactive model is on the product page. You can contact engineering@commonlands.com if you need STP files or detailed mechanical drawings.
