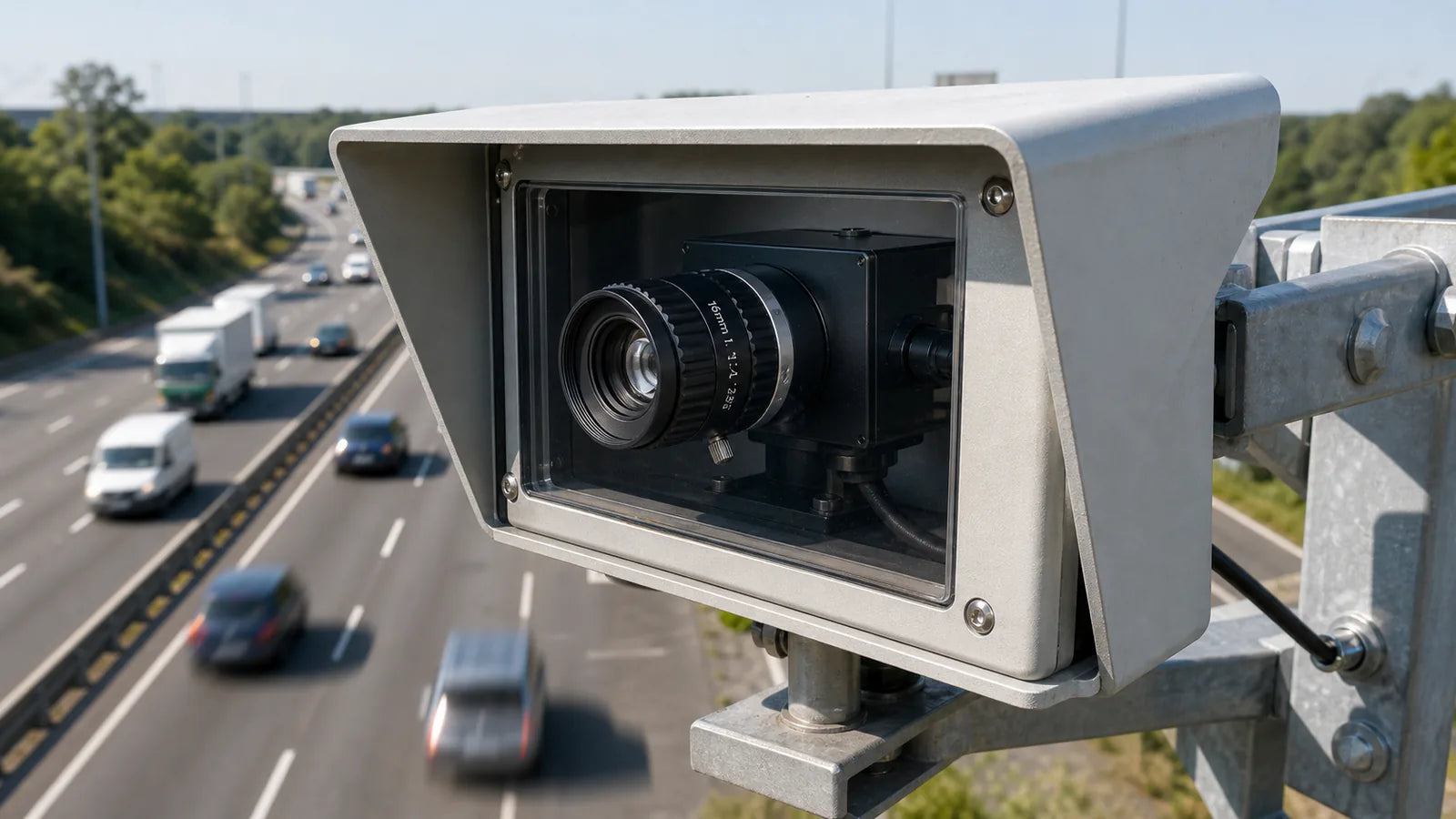

ITS lens selection comes down to focal length, iris control, and pixel density. Those three variables set the outcome for traffic monitoring, LPR/ANPR, speed cameras, smart-city intersections, and tolling.
Intelligent transportation systems (ITS) span traffic monitoring, license plate recognition, speed enforcement, smart-city intersections, and tolling. These are outdoor imaging problems at a finite working distance, typically 10 to 50 meters from camera to target. Most deployments use a C-mount lens in the 12mm to 75mm range for its telephoto reach, adjustable iris control, and high-resolution sensor coverage.
Derive focal length from mounting distance, required scene width, and sensor format rather than guessing. For license plate reads, the lens also has to put enough pixels on each character and pair with a fast shutter and NIR illumination. Telephoto alone cannot fix motion blur or contrast.
What Does an ITS Camera Need From a Lens?
An ITS lens has to resolve detail at a fixed, known distance, hold focus across a wide temperature swing, and manage light that runs from headlight glare to pre-dawn darkness. Commonlands specs traffic monitoring, LPR/ANPR, speed enforcement, and tolling optics against this shared finite-working-distance geometry, which separates ITS optics from the general outdoor surveillance covered on the lenses for surveillance page.

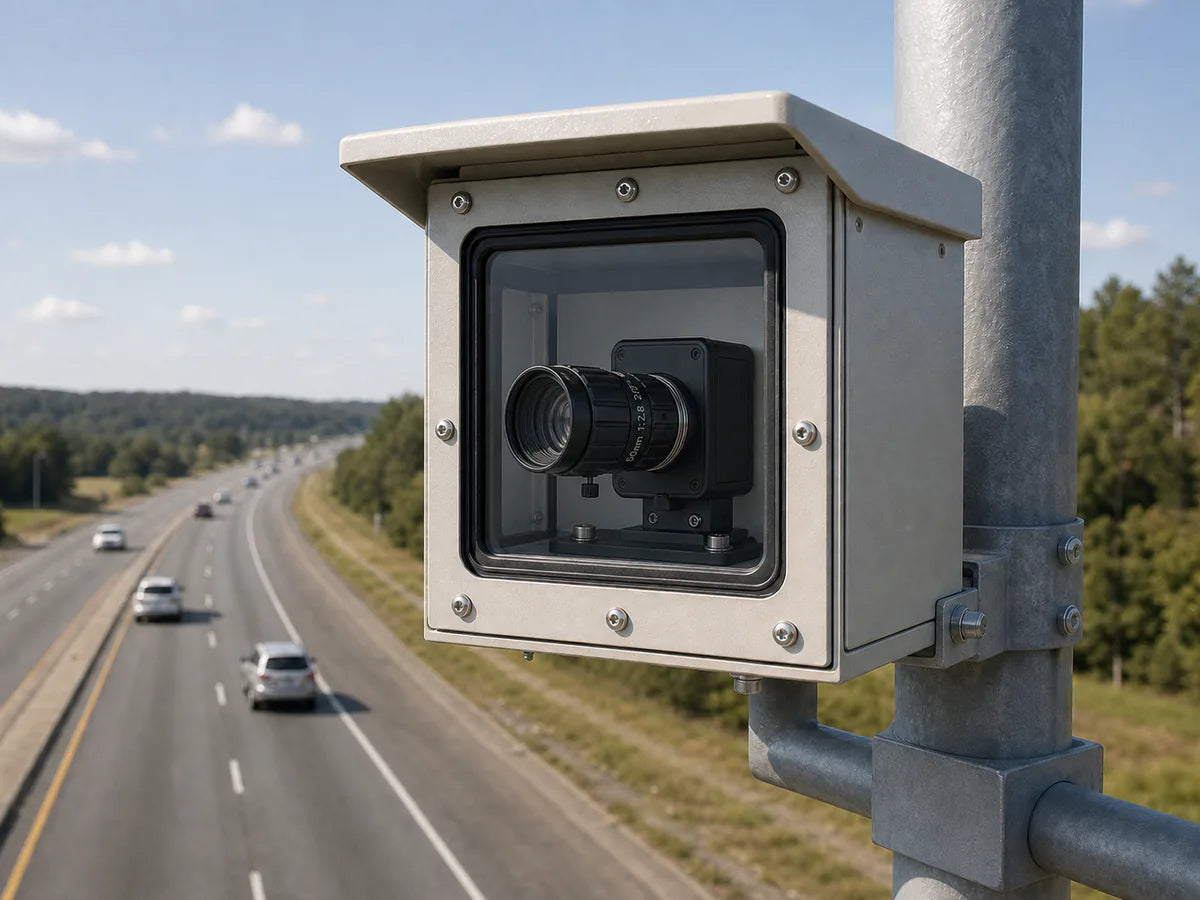

The camera targets a scene at a defined range, usually 10 to 20 meters at close pole mounts and further for highway ANPR or tolling gantries. The lens is set to that focus distance, and its depth of field must span the vehicle positions in the lane, unlike a security camera focused near infinity.
Even a 15 to 20 meter distance needs more focal length than typical embedded vision: longer lenses isolate the target lane and put more pixels on each vehicle, which lifts classifier and OCR performance. Roadside mounts also vibrate and cycle through temperature, which shifts focus over a deployment, so mechanical stability decides reliability alongside the optical formula.
Why Is C-Mount the Standard Format for ITS Cameras?
C-mount covers the focal-length range the job requires (4mm to 75mm and beyond), adds an adjustable iris ring for exposure and depth-of-field control, and uses the 1"-32 UN thread at a 17.526mm flange distance that fits most industrial cameras. Commonlands C-mount lenses reach sensor formats up to 1.2" and resolutions up to 25MP, which covers current multi-lane ANPR imagers. M12 stays the better fit for compact embedded nodes where size outweighs iris control.

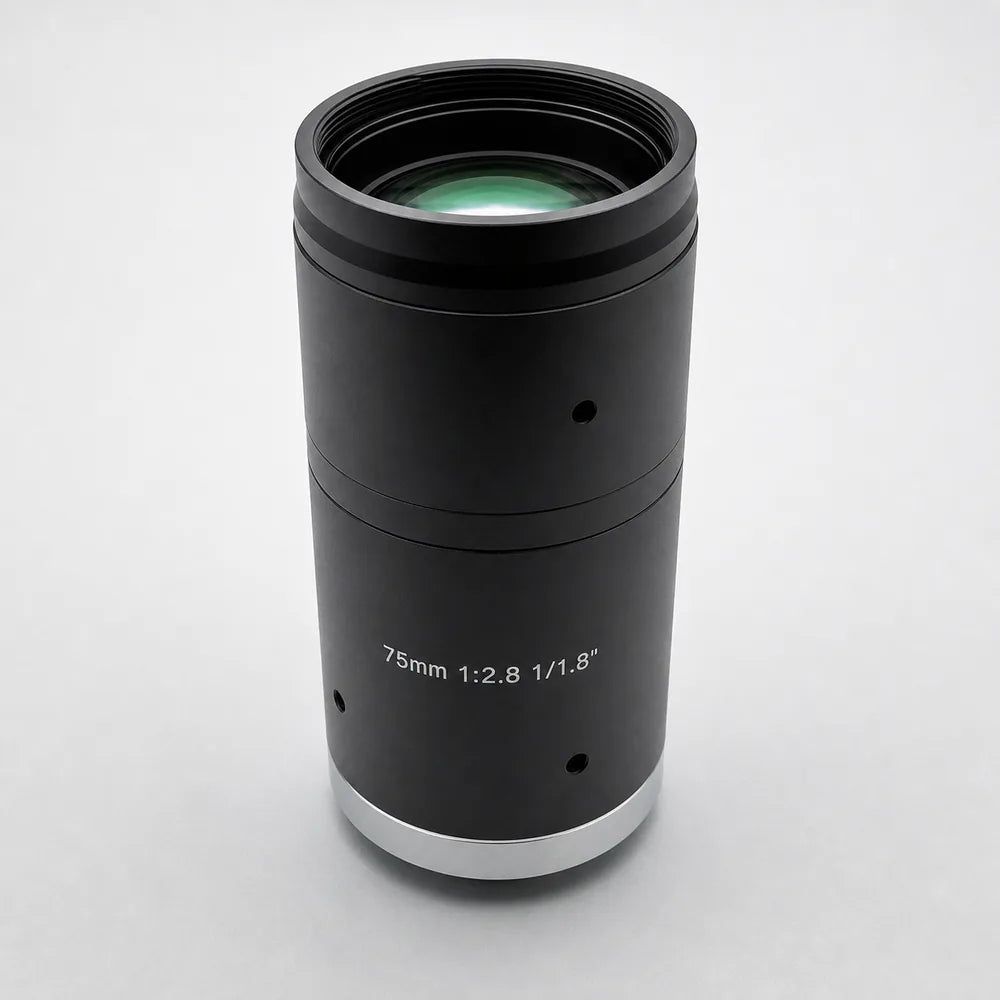

Adjustable Iris: The Key C-Mount Advantage for ITS
The iris ring is an operational requirement here, not a convenience. Traffic cameras face direct headlights at night, reflective road surfaces by day, and foreground vehicles several stops brighter than the background.
An iris does not widen the sensor's dynamic range, since it attenuates bright and dark regions together; that spread belongs to HDR readout, exposure strategy, illumination, and flare control. What the iris buys is an optical operating point: a base aperture balancing depth of field against light throughput instead of leaning on camera gain.
How Do Engineers Choose Focal Length for Traffic Monitoring?
Focal length comes from three inputs: sensor dimension, working distance, and required scene width. The formula is a far-conjugate approximation, exact only in the pinhole rectilinear ray model, and it should agree with the Commonlands EFL calculator.
A 2/3" sensor (about 8.8mm horizontal) 15 meters from a lane that needs a 5-meter scene width gives EFL = (8.8 × 15,000) / 5,000 = 26.4mm, so a 25mm lens is the match. A 10mm error at a 20-meter working distance shifts coverage by a full lane width, so confirm the geometry before ordering.
As a rough map, 12mm gives a wide intersection or approach overview at close range. 25mm covers one or two lanes at 10 to 20 meters and is the default for most pole mounts. 50mm reaches speed-enforcement plate reads and moderate-range ANPR at 20 to 30 meters, and 75mm handles long-range, bridge-mounted, and tolling work past 30 meters. Reach comes at the cost of a narrower field, higher aiming sensitivity, and more thermal-drift risk.
Longer Focal Lengths Increase Aiming Sensitivity
Aiming sensitivity climbs with focal length. At 15 meters a 1-degree error shifts the boresight about 260mm regardless of focal length, but a 75mm lens framing a narrow scene loses a real fraction of its field to that shift, while a 25mm lens barely notices it. A rigid mount and a thermally stable enclosure matter more as focal length grows. See working distance in machine vision lenses.
What Lens Should You Use for License Plate Recognition?
Choose a fixed focal length long enough to keep plate characters large on the sensor at the working distance. For a 20 to 50 meter standoff, a 50mm telephoto M12 lens such as the CIL051 is a proven start. For longer range or when iris control matters, the 75mm C-mount CIL579 adds an adjustable F/3-F/20 aperture for depth-of-field control.
ANPR software reads characters from pixel data and cannot infer what the sensor never resolved. The chain has to deliver four things: enough pixels on the plate (a widely used minimum is 20 to 30 pixels across the height of a character, below which B/8, O/0, and I/1 turn unreliable), sharp focus across the plate distances in the lane, motion blur held to a small fraction of a character stroke, and contrast from matched NIR illumination and a bandpass filter.
Sizing Focal Length and Pixels on Target
Verify pixels per character on the vertical axis: pixels per character = sensor_pixels_V × character_height / FOV_height. Character height, not plate width, is what the OCR minimum is stated against, so do not divide plate-width pixels by character count. As a worked case, a 1/2.3" 12MP sensor (4000px wide) at 25m behind a 50mm lens frames a 3.0m corridor at about 1.30 px/mm, so a 70mm character gets roughly 91 pixels and clears the 20-30px minimum.
Round down to the next stock focal length for general monitoring to keep the scene in frame. Round up for plate reading to add pixels, after confirming the narrower field still covers the corridor where plates pass.
Why Telephoto Alone Can Still Fail
Telephoto magnifies the scene, so it magnifies motion blur along with it. At 100 km/h a vehicle moves about 28mm per millisecond. On the geometry above, 1ms of motion smears roughly 37 pixels, enough to make characters unreadable. Production ITS systems freeze this with a strobed NIR illuminator. Its pulse length, not the exposure window, sets the effective integration time, so tens of microseconds of light works without starving the sensor.
Longer lenses also shorten depth of field. A C-mount lens can stop down to recover it, but only until diffraction takes over. Confirm the diffraction limit against your pixel pitch at the operating wavelength rather than a fixed F-stop. See how to choose focal length for the depth-of-field math.
A co-located NIR illuminator falls off with the inverse square of distance, so doubling working distance needs about four times the power, paired with an IR bandpass filter to suppress headlight glare.
How Do Glare, Headlights, and Low Light Affect ITS Lens Choice?
Fast Aperture and Headlight Glare
A fast lens (F/1.4 or F/2.8) lowers the minimum illumination for a clean image. The F/1.4 CIL522 and CIL525 suit low-light ITS work, though wide open the depth of field is shallow and aberrations and vignetting are largest. Headlights bloom when they saturate the sensor, and a wide aperture gets there sooner; stopping down dims the whole frame, headlight peaks included, pulling highlights back under saturation at the price of scene light.
The adjustable iris on the CIL579 (F/3 to F/20) sets that exposure floor without touching camera gain, but there is no sharpening headroom to stop into: on roughly 2µm pixels the wide-open F/3 already sits at the two-pitch Airy marker for 550nm light, and under 850nm strobed NIR the Airy diameter grows about 55% larger, moving that marker near F/1.9.
Stopping down still buys depth of field, in proportion to the working F-number, paid for in light and resolution, so set exposure and strobed NIR illumination first. If one camera must hold focus across both visible and NIR, confirm the lens is IR-corrected; a channel imaging only in its NIR band can instead be focused for that band.
Shutter, Thermal Drift, and Sealing
Prefer a global shutter for fast vehicles under ambient exposure, since rolling readout skews and smears plates as the frame is scanned. Rolling shutter works only when a strobe fires while all rows are simultaneously light-sensitive in low ambient, as production ANPR does with NIR strobes. See global shutter vs rolling shutter. Outdoor mounts also drift focus over a 30 to 40 degree Celsius day-night cycle, so check thermal drift against the depth-of-focus budget and validate enclosure sealing for dust, rain, and humidity.
Top Lenses for ITS and License Plate Recognition
For most ITS and license plate recognition cameras, a Commonlands C-mount prime in the 12mm to 75mm range covers the job: the 25mm CIL525 for general lane monitoring, the 50mm CIL536 for speed-enforcement plate reads, and the 75mm CIL579 (adjustable iris) for long-standoff tolling. On embedded camera boards, the 50mm CIL051 telephoto M12 lens handles compact LPR at 20 to 50 meters. Size focal length against your mounting distance and sensor with the field-of-view calculator before ordering.
| ITS 과제 | 렌즈 | 마운트 | EFL | 아이리스 | 이 선수를 선택한 이유 |
|---|---|---|---|---|---|
| 번호판 인식 (임베디드 방식, 20~50m 거리) | CIL051 | M12 | 50mm | 수정됨 | 0.1% TV distortion keeps character geometry clean, and the M12 body fits directly on embedded LPR cameras. The 35mm CIL350 covers shorter parking and entry-lane reads. |
| 교통 모니터링 및 차로 점유 현황 (10~20m) | CIL525 | C-마운트 | 25mm | F/1.4 | Balanced field of view and magnification for one or two lanes, with an F/1.4 floor for low light. The 12mm CIL522 widens to a full intersection overview. |
| 과속 단속 (트리거 프레임에서 번호판 인식) | CIL536 | C-마운트 | 50mm | F/2.8 | Rated to resolve 12MP on a sensor with 1.85µm pixels. Paired with that camera at 20 to 30 meters, the geometry still leaves enough pixels per plate character to survive a strobe-frozen citation frame. |
| 통행료 징수 게이트 (긴 스탠드오프, 각도 조절형 마운트) | CIL579 | C-마운트 | 75mm | F/3~F/20 조절 가능 | Adjustable F/3-F/20 iris buys depth of field across varying vehicle height, but on roughly 2µm pixels the wide-open F/3 already sits at the two-pitch Airy marker at 550nm (near F/1.9 at 850nm NIR), so every stop past wide open trades sharpness and light for that depth. Cut headlight blooming with exposure and strobed NIR illumination instead. Its 8.9mm image circle covers 1/1.7" to 1/1.8" sensors, so a 2/3" camera needs a different part. |

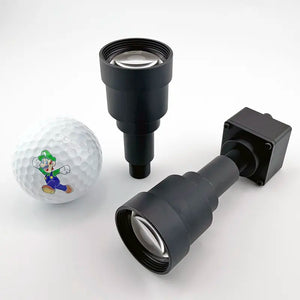

When one camera must cover several standoff distances or the geometry is not fixed, a motorized varifocal CCTV lens from a vendor like Computar or Fujinon fits better than a fixed prime, since a fixed focal length wins only once distance and framing are locked. A varifocal is not parfocal, though: each zoom position needs refocusing, and pixel-based calibrations such as plate corridors and speed baselines must be redone per setting. Browse the telephoto M12 lens collection for longer-reach embedded options.
자주 묻는 질문
ITS 교통 감시 카메라에는 어떤 렌즈가 가장 적합할까요?
A C-mount lens in the 12mm to 75mm range covers most ITS deployments. Intersection and approach-overview cameras sit at the short end, 4mm to 12mm. Plate reading, speed enforcement, and tolling sit at the long end, 25mm to 75mm. Commonlands recommends C-mount over M12 for outdoor ITS because it offers adjustable iris control and longer focal-length reach.
번호판 인식에는 어떤 렌즈를 사용해야 할까요?
Choose a fixed focal length long enough to keep plate characters large on the sensor at the required working distance. For standoff distances of 20 to 50 meters, a Commonlands 50mm telephoto M12 lens such as the CIL051 is a proven starting point. For longer distances or when iris control matters, a 75mm C-mount lens such as the CIL579 gives adjustable F/3-F/20 aperture for depth-of-field control. Calculate the required focal length from plate size, sensor size, working distance, and minimum pixels per character before selecting.
왜 ITS 교통 모니터링 분야에서 C-마운트 렌즈가 널리 사용되나요?
Traffic cameras operate outdoors over working distances of roughly 10 to 50 meters and must handle bright midday sun, direct headlights at night, and low ambient light in the same deployment. An adjustable iris ring lets engineers stop down to control depth of field and reduce headlight glare without changing the camera body. Commonlands C-mount lenses also cover focal lengths from 4mm up to 75mm, which M12 typically does not reach.
정확한 OCR 처리를 위해 차량 번호판에는 몇 픽셀이 있어야 할까요?
A widely used minimum is 20 to 30 pixels across the height of a plate character. Below that, ambiguous characters such as B/8, O/0, and I/1 tend to become unreliable, though the exact threshold depends on contrast, blur, compression, and the OCR algorithm. Compute pixels per character directly from the vertical axis: sensor_pixels_V × character_height / FOV_height. A horizontal pixel allotment across plate width divided by character count is not the same measurement and should not be compared against a height-based OCR minimum.
눈부심, 헤드라이트, 저조도 조건이 ITS 렌즈 선택에 어떤 영향을 미치나요?
A faster lens (lower F#, such as F/1.4) collects more light at night but risks headlight overexposure wide open. Stopping down dims the whole frame, headlight peaks included, and can cut aberration blur, but diffraction grows as the aperture shrinks, so stop toward the diffraction limit for your pixel pitch at the operating wavelength; the 850nm Airy diameter is about 55% larger than at 550nm. An IR-corrected lens matters when one focus must hold across visible and NIR; an NIR-only channel can be focused for its band.
관련 자료
These Commonlands technical guides cover the mount, focal-length, working-distance, and sensor decisions behind an ITS lens spec.
- What is a C-mount lens?Thread standard, flange distance, and sensor format coverage.
- M12 vs C-mount vs CS-mountSide-by-side comparison of the machine vision mount standards.
- How to choose focal lengthSelection from sensor size, working distance, and field of view.
- Working distance in machine vision lensesHow working distance interacts with focal length and depth of field.
- Image sensor selection for machine visionSensor format, pixel pitch, shutter type, and resolution matching.
- Camera field-of-view calculatorField of view from sensor format, focal length, and working distance.
Need Help Sizing an ITS Lens?
센서 형식, 조리개 범위, 열적 안정성, 셔터 호환성 등은 모두 ITS 카메라가 전체 구축 주기 동안 안정적으로 작동하는지에 영향을 미칩니다. Commonlands 엔지니어들은 고객의 작동 거리, 센서, 플레이트 픽셀 요구 사항을 검토하여 적합한 초점 거리와 마운트 유형을 추천해 드립니다.
