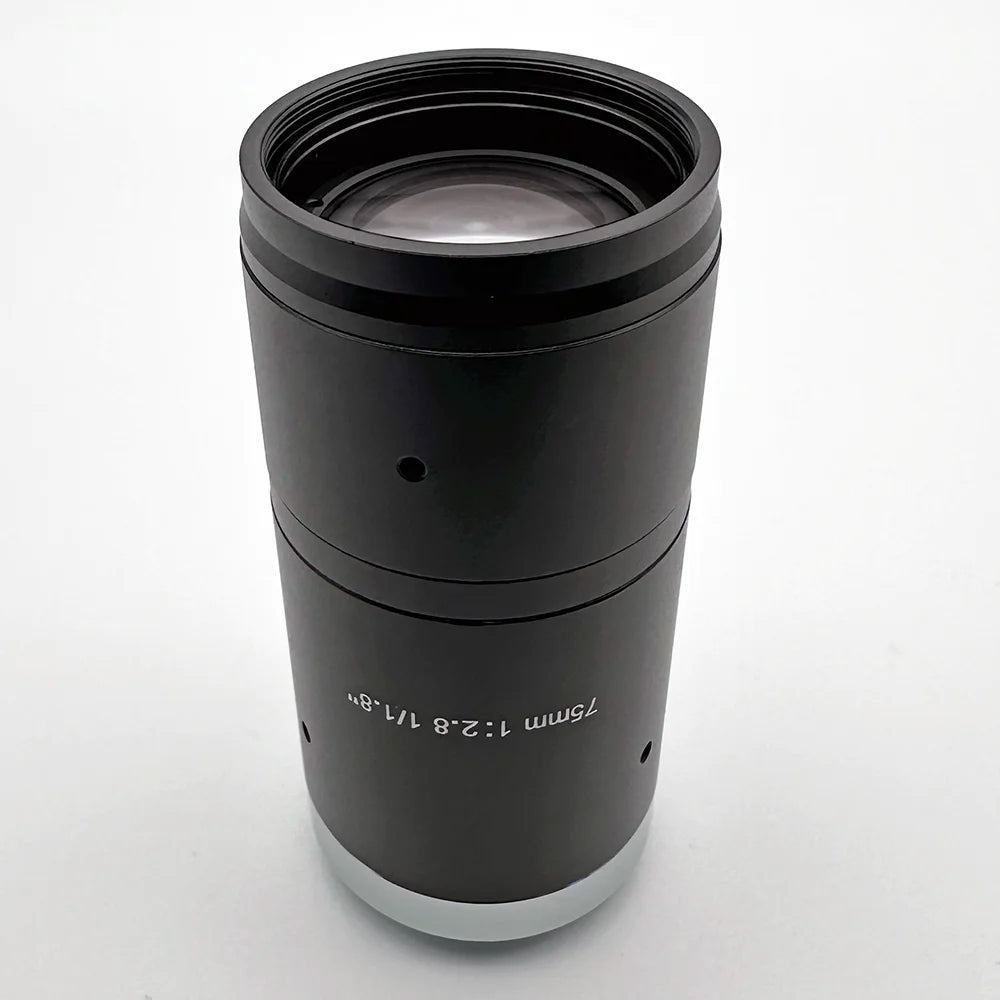

75mm C-Mount Lens for up to 1/1.7" sensors

CIL579 is a 75mm C-mount lens for 1/1.7" to 1/1.8" sensors resolving 8-12MP at approximately 2µm pixel pitch. Sensors like the Sony IMX678 and IMX568 pair well here. The aperture adjusts from F/3.0 to F/20, and the working distance starts at 500mm, so you can tune depth of field from half a meter out to infinity.

This is a finite conjugate optimized design, not a generic infinity-first lens. That choice matters at close range because it gives you better corner sharpness at shorter working distances than the usual C-mount telephoto lens. Distortion is 0.05% across the 8.9mm image circle, which is low enough to skip software correction in most dimensional measurement setups. The 5.8° field of view is easy to model with the calculator.

The lens uses all-glass construction and weighs 138g. Commonlands ships the C-mount A variant as CIL579-F3.0-CMANIR without an IR cut filter, so you should plan on a sensor-side filter or a standalone optical filter if you need daylight color accuracy.

The lens is compatible with Commonlands CLA021 lens holders, e-con Systems 7mm mounts, D3 Engineering boards, Allied Vision, Basler Dart, and The Imaging Source cameras. It also fits the Raspberry Pi HQ camera M12 mount with adapter. You can use depth of field calculator for depth of field at your working distance.

The lens ships same day from San Diego for orders placed before 12 PM PST. Volume pricing is available starting at 50 units. You can contact our US-based engineering team for custom aperture configurations or application support.
