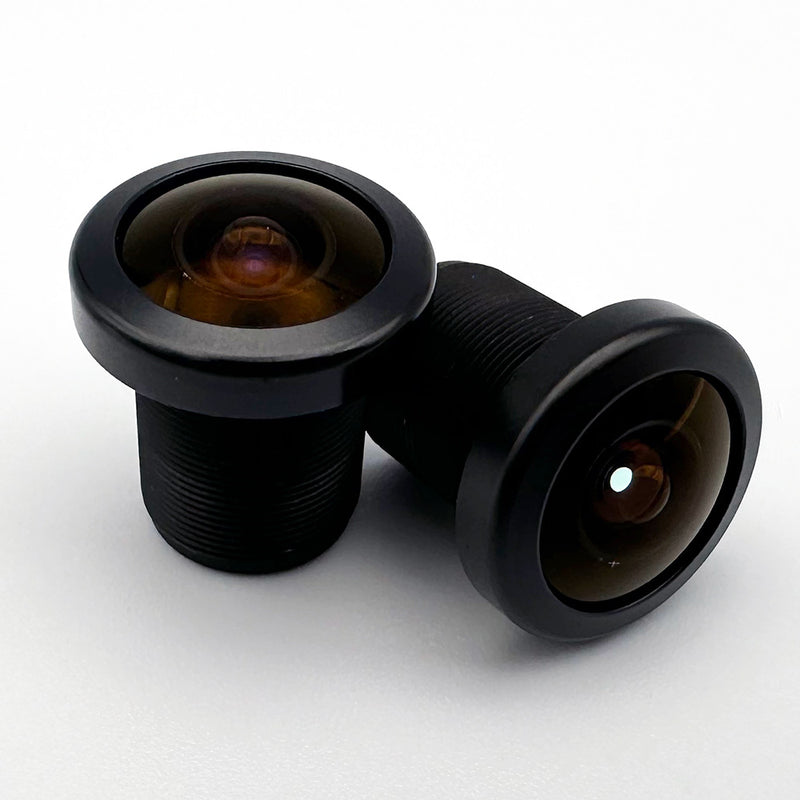

M12 Wide Angle Lens for up to 12MP 1/2" such as IMX477 and IMX412
GoPro 2.9mm M12 렌즈
렌즈 기능
IP67 등급
방수 및 방진 기능이 필요한 외부 노출 애플리케이션을 위한 IP67
광학 및 기계 사양 테이블
| 렌즈 파라미터 | 성능 상세 정보 |
|---|---|
| 부품 번호 | CIL330 |
| EFL | 2.9 |
| F# | 2.6 |
| 해상도 | 12MP |
| 시야각 | 120° @ 6.0mm image circle — Calculate FoV for your sensor |
| 이미지 서클 | 8.0mm |
| 왜곡 | -3% F-Θ |
| 무게 | 7g |
| IR 컷오프 필터 | P/N With: CIL330-F2.6-M12B650 P/N Without: CIL330-F2.6-M12BNIR |
| 구조 | All Glass |
기계적 변형들
| 변형 | 설명 |
|---|---|
| M12A | IP67, 렌즈 1 표면 1에 BBAR 코팅, AL6061 배럴, 3.6mm MBFL |
| M12B | IP67, 렌즈 1 표면 1에 BBAR 코팅, AL6061 배럴, 4.4mm MBFL |
기계 레이아웃
카메라 기계적 호환성 표*
| 카메라/마운트 | 호환성 |
|---|---|
| Commonlands CLA024 | CLA024 |
| e-con Systems S-Mount | 8mm-13mm 높이 M12 홈더 |
| Allied Vision Alvium S-Mount | 예 |
| FLIR Blackfly S 보드 | 예 |
| iDS uEye XLS | 예 |
| The Imaging Source M12 | 예 |
| Basler Dart S-마운트 | 예 |
*카메라 제조업체에서 제공하는 표준 M12x0.5 렌즈 마운트를 전제로 한 기계적 호환성입니다. 광학 호환성은 별도로 확인하시기 바랍니다.
Frequently asked questions
What sensors work with the CIL330 2.9mm wide-angle M12 lens?
The CIL330 supports 1/2\" sensors up to 12MP including the Sony IMX477 and IMX412. The 8.0mm image circle covers 1/2\" format boards used in Raspberry Pi HQ, drones, and machine vision cameras.
How much distortion does the CIL330 have?
The CIL330 has -3% F-Θ distortion. The F-theta projection keeps angular resolution nearly constant across the 120° field — beneficial for SLAM, stitching, and surveillance where uniform pixel density matters.
Is the CIL330 IP67 rated for outdoor use?
Yes. Both M12A and M12B variants are IP67 rated with sealed aluminum barrels. Suitable for outdoor cameras, drones, agricultural robots, and any application exposed to dust or water.
What is the difference between the CIL330 M12A and M12B variants?
The M12A has a 3.6mm mechanical back focal length and the M12B has 4.4mm MBFL. Choose based on your camera board-to-sensor stack height. Both share identical optics, IP67 sealing, and filter options.
Does the CIL330 ship same day from the US?
Yes. Commonlands ships all in-stock CIL330 lenses same day from San Diego for orders before 12 PM PST.
What is the field of view of the CIL330 2.9mm M12 lens?
The CIL330 delivers 120° field of view at the 6.0mm image circle. Use the calculator at https://commonlands.com/pages/camera-field-of-view-calculator to check exact coverage on your sensor format.
