Sony IMX490 · 5.4MP 1/1.55" rolling-shutter CMOS image sensor
IMX490 Sensor Specifications & Compatible M12 and C-Mount Lenses
IMX490 is a Sony 1/1.55-inch rolling-shutter CMOS image sensor in the Exmor R family used for camera modules. Its 2880x1860, 5.4 MP array uses 3 um pixels at 40 fps over MIPI CSI-2, in color across a 10.29 mm diagonal. Pick an M12 Lens for the 10.29 mm image circle from the table below, built on measured lens data rather than focal-length-only estimates.
IMX490 specifications
| Part number | IMX490 |
|---|---|
| 제조사 | 소니 |
| Family | Exmor R |
| 결의안 | 2880x1860 (5.4 MP) |
| 광학 형식 | 1/1.55" |
| Active area | 8.64 × 5.58 mm |
| Sensor diagonal | 10.29 mm |
| 픽셀 크기 | 3.0 µm |
| 셔터 | 구르기 |
| 최대 프레임 속도 | 40 fps |
| 인터페이스 | MIPI CSI-2 |
| Color / mono | Color |
Manufacturer datasheet: Sony IMX490 product page
Lens selection for the IMX490 with calculated field of view
Each field of view below is calculated for the IMX490 active area (8.64 × 5.58 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists focal length, mount, aperture (F#), and coverage. Follow the product links for distortion, ingress protection, dimensions, and resolution specifications. Coverage compares the lens image circle with the 10.29 mm sensor diagonal. Entries marked Circular image do not cover the full diagonal; part of the sensor lies outside the image circle. Run working-distance and object-size numbers through the field of view calculator.
Engineering picks for the IMX490

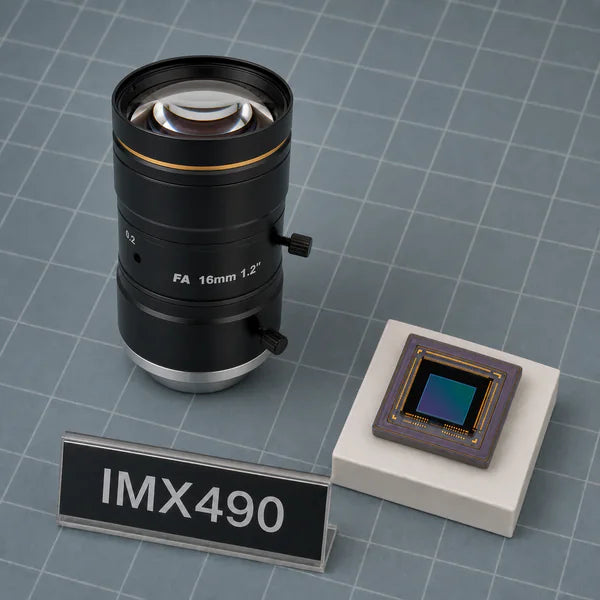

- Best ~30° HFoV: 16mm C-Mount Lens (CIL553) (16 mm, f/2.8). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the IMX490: 30° H × 20° V (36° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the IMX490: 57° H × 38° V (65° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Wide-Angle 4.5mm M12 Lens (CIL344A) (4.5 mm, f/2.7). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the IMX490: 112° H × 72° V (135° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Compact low-cost pick: Telephoto 50mm M12 Lens (CIL051) (50 mm, f/2.8). Why: the lowest-priced covering M12 barrel ($79). Field of view on the IMX490: 10° H × 6° V (12° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Find a lens for the IMX490 in the M12 Lens collection or the C-Mount Lens collection. The covering options below run from 1.3 mm to 100 mm focal length and span 5° to 184° horizontal field of view on the IMX490 active area.
| Commonlands Lens | Focal Length | 마운트 | F# | Horizontal FoV | Vertical FoV | Diagonal FoV | Coverage |
|---|---|---|---|---|---|---|---|
| Fisheye 1.3mm M12 Lens (CIL293) | 1.3 mm | M12 | f/2.2 | 184° | 184° | 184° | Circular image |
| 4mm C-Mount Lens (CIL529) | 4 mm | C-마운트 | f/2.8 | 98° | 71° | 109° | Covers |
| Wide-Angle 4.5mm M12 Lens (CIL344A) | 4.5 mm | M12 | f/2.7 | 112° | 72° | 135° | Covers |
| 4.9mm C-Mount Lens (CIL505) | 4.9 mm | C-마운트 | f/2.2 | 104° | 66° | 125° | Covers |
| 8mm C-Mount Lens (CIL521) | 8 mm | C-마운트 | f/1.5 | 57° | 38° | 65° | Covers |
| 8.5mm C-Mount Lens (CIL508) | 8.5 mm | C-마운트 | f/2.4 | 55° | 37° | 64° | Covers |
| 12mm C-Mount Lens (CIL552) | 12 mm | C-마운트 | f/2.8 | 40° | 26° | 46° | Covers |
| 16mm C-Mount Lens (CIL553) | 16 mm | C-마운트 | f/2.8 | 30° | 20° | 36° | Covers |
| 25mm C-Mount Lens (CIL554) | 25 mm | C-마운트 | f/2.6 | 20° | 13° | 23° | Covers |
| 35mm C-Mount Lens (CIL555) | 35 mm | C-마운트 | f/2.6 | 14° | 9° | 17° | Covers |
| Telephoto 50mm M12 Lens (CIL051) | 50 mm | M12 | f/2.8 | 10° | 6° | 12° | Covers |
| 50mm C-Mount Lens (CIL556) | 50 mm | C-마운트 | f/2.8 | 10° | 6° | 12° | Covers |
| 75mm C-Mount Lens (CIL557) | 75 mm | C-마운트 | f/3 | 7° | 4° | 8° | Covers |
| Telephoto 100mm M12 Lens (CIL100) | 100 mm | M12 | f/3.6 | 5° | 3° | 6° | Covers |
Covers in the table means the lens image circle is at least as large as the 10.29 mm sensor diagonal. Confirm corner illumination and MTF at your aperture, wavelength, and working distance. A complete circular fisheye image fits inside the sensor only when its diameter is no larger than the sensor's short side. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the IMX490
Start from the field of view and working distance your application needs. Confirm that the lens image circle covers the active sensor diagonal and that the mount provides the required focus travel and rear clearance. A lens megapixel rating alone does not establish resolution on this sensor. Compare measured MTF at the spatial frequencies your task needs, at the intended aperture, wavelength, distance, and field position, accounting for the 3.0 µm pixel pitch. Estimate framing with the Commonlands field of view calculator.
Sourcing a camera module around the IMX490? Commonlands manufactures M12 lenses and C-mount lenses and ships from San Diego, with same-day shipping on in-stock lenses ordered before 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the IMX490 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned IMX490 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
IMX490 lens and camera module FAQ
What lens fits the IMX490 sensor?
A lens match requires sufficient image-circle coverage, suitable MTF, and mechanical clearance. Use the coverage column and calculated field of view to shortlist lenses, then verify the operating conditions on each product page.
What is the IMX490 sensor size?
The IMX490 is a 1/1.55" format sensor with a 8.64 × 5.58 mm active area and a 10.29 mm diagonal, built on 3.0 µm pixels at 2880x1860 resolution.
Does Commonlands build a custom MIPI camera module for the IMX490?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the IMX490 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your IMX490 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
