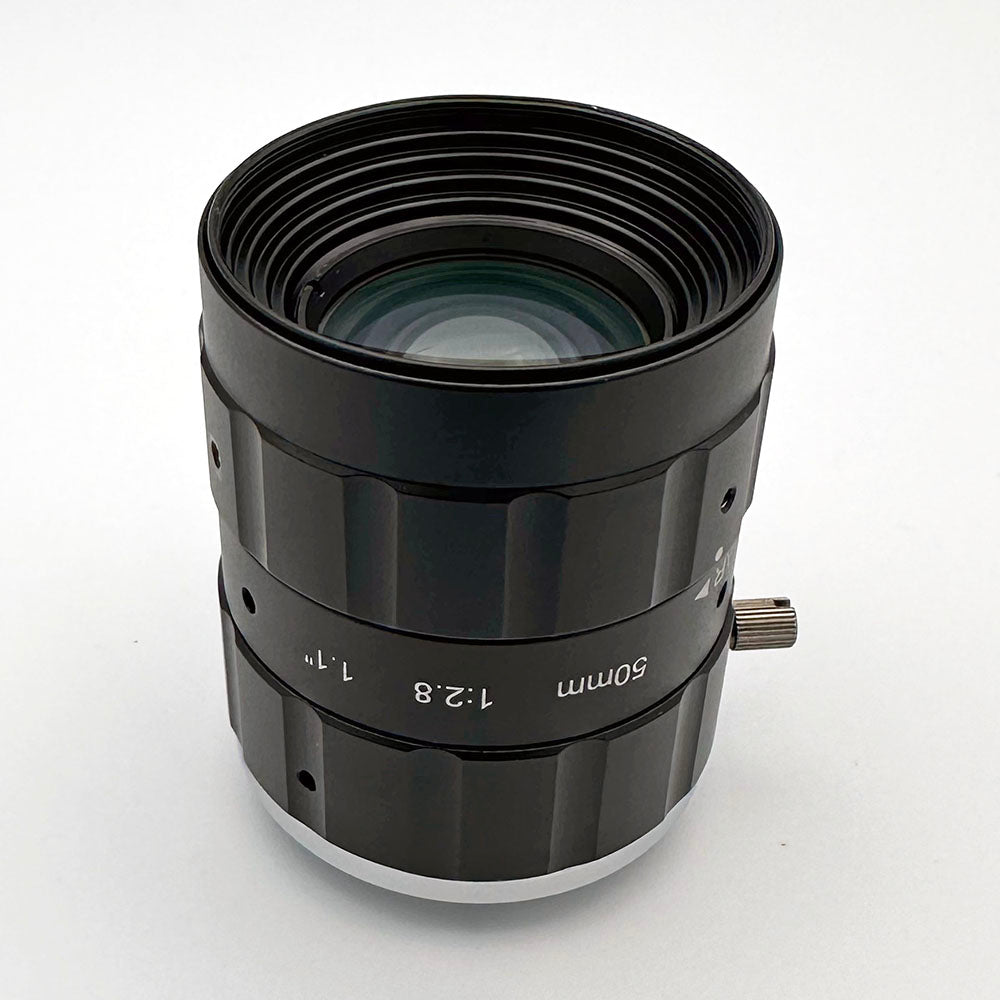

50mm C-Mount lens for up to 20MP 1.1" Sensors
50mm C-마운트 렌즈 1.1" 20MP+
CIL546은 IMX540과 같이 2.74um의 픽셀 피치를 가진 1.1" 20MP+ 센서용 50mm C-Mount 렌즈입니다. F/2.8에서 F/16까지 조리개를 조절할 수 있습니다. 이 렌즈의 최소 작동 거리는 250mm입니다.
In stock — orders before 12 PM PST ship same day
렌즈 기능
고해상도
Suitable for 2.74um pixel pitch at F/2.8
광학 및 기계 사양 테이블
| 렌즈 파라미터 | 성능 상세 정보 |
|---|---|
| 부품 번호 | CIL546 |
| EFL | 50.0 |
| F# | 2.8 |
| 시야각 | 20° @ 17.6mm — Calculate FoV for your sensor |
| 왜곡 | 0.0007 |
| 무게 | 127g |
| 구조 | All Glass |
기계 레이아웃
Frequently asked questions
What sensors does the CIL546 50mm C-mount lens support?
The CIL546 fits 1.1 inch sensors with 2.74µm pixel pitch at 20MP and above. It works well with the IMX540 and comparable area scan sensors, and the 17.6mm image circle fully covers the 1.1 inch format.
How much distortion does the CIL546 have?
Distortion measures 0.07%, which is effectively zero. You do not need software correction for most metrology, gauging, or precision measurement work at that level.
What is the CIL546 minimum working distance?
The minimum working distance is 250mm. The CIL546 is optimized from 250mm to infinity, so it works well in telephoto setups that need tight framing at distance.
Can I adjust the aperture on the CIL546 50mm lens?
Yes, the aperture adjusts from F/2.8 to F/16. Stopping down adds depth of field, but it costs you light, which is the usual tradeoff in parts inspection. You can use depth of field calculator to model your setup.
Does the CIL546 include a filter thread?
Yes, the CIL546 has an M35.5x0.5 filter thread. It accepts standard machine vision bandpass, polarization, and neutral density filters.
Does the CIL546 ship same day from the US?
Yes, Commonlands ships in-stock lenses same day from San Diego for orders placed before 12 PM PST. You can contact us for current CIL546 stock levels and volume pricing.
Similar C‑Mount Lenses: 4mm – 75 mm Industrial Optics
