최대 1/2.5" 센서용 12mm M12 렌즈(예: OX05B1S)

The CIL123 is an IR corrected 12.5mm M12 lens for 1/2.5" sensors, resolving 3–5MP at 2.2μm pixel pitch. It gives you a 34° field of view across the 7.2mm image circle, which is tight enough for surveillance and outdoor monitoring without moving to a bulkier lens family. At $29, it also gives you IR correction at a price point that makes sense for cost-sensitive builds.

Distortion is -0.3% F-Theta, so the image stays straight enough for measurement work and cleaner video feeds. The IR correction keeps visible and near-IR wavelengths on the same focal plane, which matters if a day and night camera uses sensors like the OX05B1S. That means the system does not need to refocus when illumination changes from visible light to NIR.

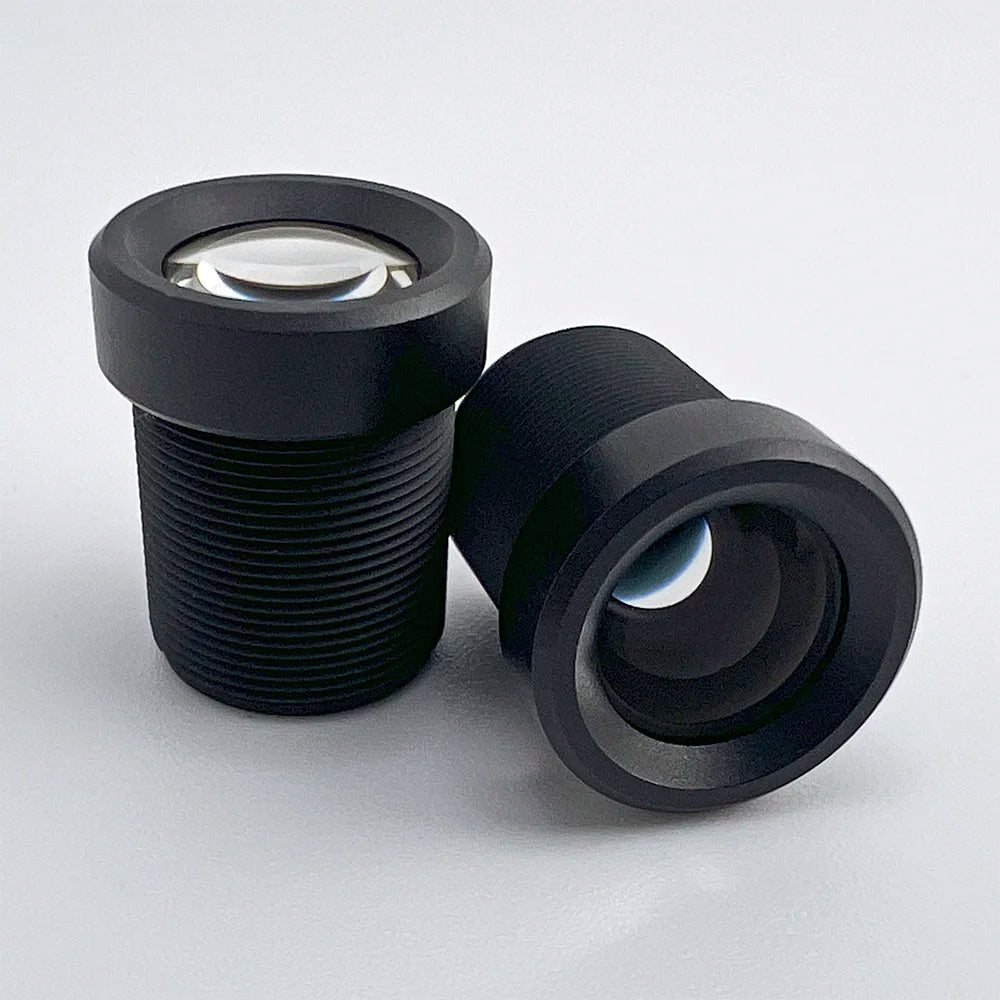

The lens uses all-glass elements in an AL6061 aluminum barrel and weighs 5g. That material set handles temperature swings better than low-cost plastic-heavy lenses, so it is a safer choice for parking structures, perimeter cameras, and agricultural systems that live outdoors. You are still buying a compact M12 lens, but you are not buying the cheapest mechanical build in the category.

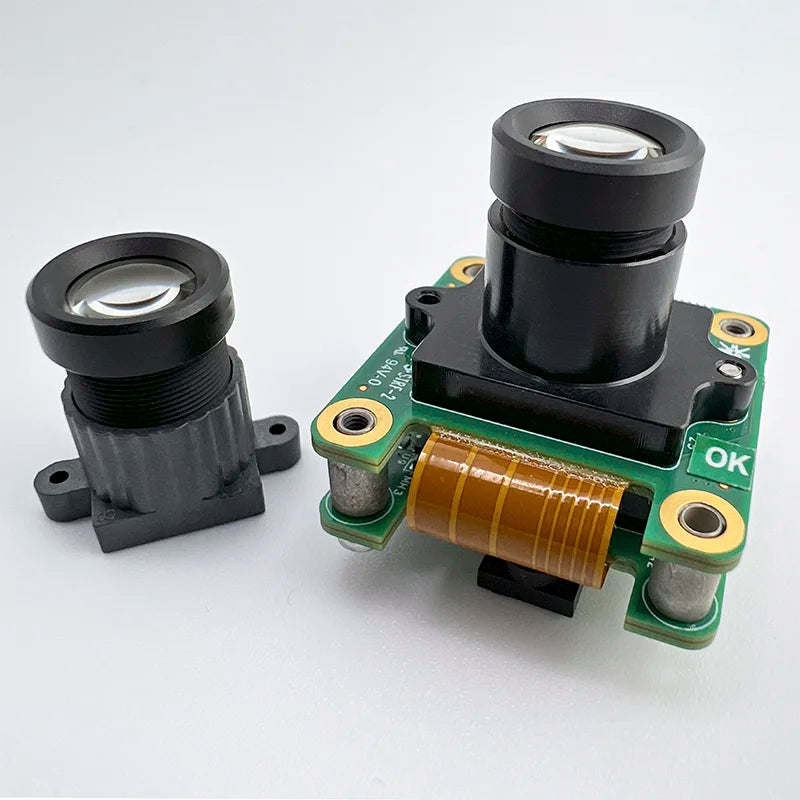

You can order CIL123-F2.3-M12A650 with the 650nm IRC filter for daylight or CIL123-F2.3-M12ANIR for NIR applications. The lens fits FLIR Blackfly S, Allied Vision Alvium, iDS uEye LE, The Imaging Source, and Basler Dart cameras, while e-con Systems boards need a 10–13mm tall holder. The Commonlands CLA018 is the recommended mount.

Commonlands ships in-stock parts same day from San Diego before 12 PM PST. You can model depth of field at depth of field calculator or field of view at field of view calculator
