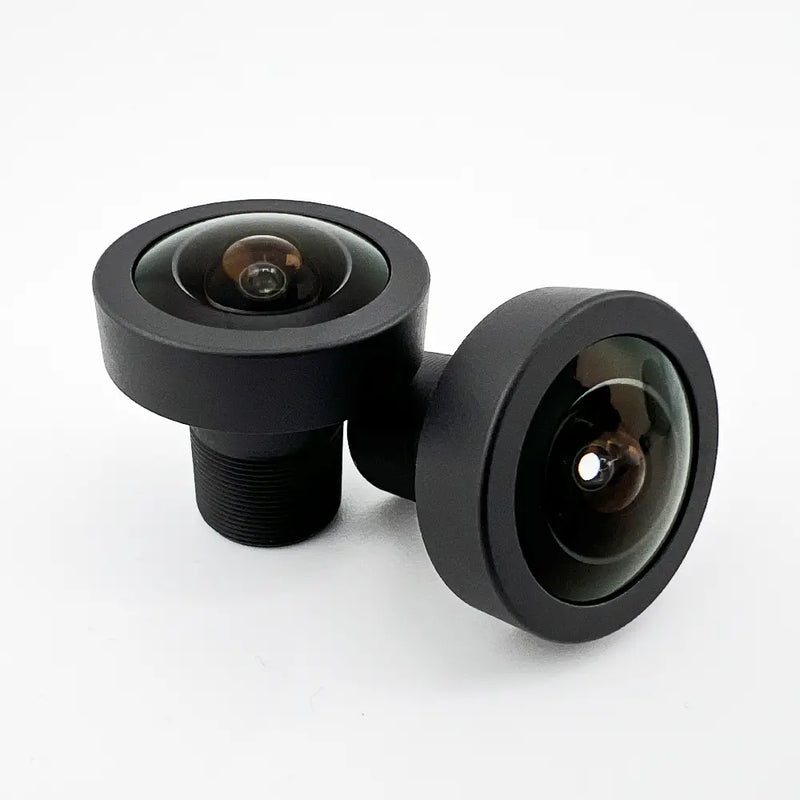

200° M12 Miniature Fisheye Lens for up to 1/1.8"" such as IMX728 and AR0823

190°@9.1mm 어안 M12 렌즈

CIL231은 3.1mm 초소형 어안 렌즈로, 9.1mm 이미지 서클에서 190°의 화각을 제공하며 1/1.8" 타입 센서에서 180° 대각선 화각을 제공합니다. F/1.9의 조리개는 놀라운 저조도 성능과 뛰어난 4K+ 성능을 제공합니다. CIL231은 IP67 등급으로 밀폐되어 있습니다.
$99.00

62pcs CIL231-F1.9-M12A650 (F/1.9 / M12A / With 650nm IRC Filter) in stock in the US

60pcs CIL231-F1.9-M12ANIR (F/1.9 / M12A / Without Filter) in stock in the US

In stock — orders before 12 PM PST ship same day

렌즈 기능

낮은 F/##

전면 유리 및 금속 디자인으로, F/1.9 조리개는 매우 낮은 조도에서도 뛰어난 성능을 제공합니다.

IP67

먼지 및 방수 기능에 대한 IP67 등급

광학 및 기계 사양 테이블

렌즈 파라미터 성능 상세 정보
부품 번호CIL231
EFL3.1
F# 1.9
해상도12MP+, 1.55μm
시야각190° @ 9.1mm image circle — Calculate FoV for your sensor
이미지 서클9.0mm
왜곡-10% FΘ @9.1mm
See [mechanical drawing](https://docsend.com/view/s/9srqiufx3zuw89hj) for Optical, FΘ, and full TV distortion.
무게12g
IR 컷오프 필터P/N With: CIL231-F1.9-M12A650
P/N Without: CIL231-F1.9-M12ANIR
구조All Glass, 알루미늄

기계적 변형들

변형 설명
M12A IP67, 렌즈 1 표면 1에 BBAR 코팅, 금속 캡+배럴

기계 레이아웃

카메라 기계적 호환성 표*

*카메라 제조업체에서 제공하는 표준 M12x0.5 렌즈 마운트를 전제로 한 기계적 호환성입니다. 광학 호환성은 별도로 확인하시기 바랍니다.

Same Day Ship by 12 PM PST
US-Based Optical Engineering Support
25,000+ Stock in California
100% MTF Tested

Frequently asked questions

What sensors work with the CIL231 3mm fisheye M12 lens?

The CIL231 covers 1/1.8 inch sensors including the Sony IMX728 and ON Semiconductor AR0823. It resolves 12MP+ at 1.55μm pixel pitch across a 9.0mm image circle.

What is the field of view of the CIL231 fisheye lens?

The CIL231 gives 190° field of view at the 9.1mm image circle. Use field of view calculator if you want the exact coverage on your sensor format.

Is the CIL231 IP67 waterproof?

Yes, the M12A variant of the CIL231 is IP67 sealed with a metal cap and barrel. It is rated for dust ingress and water immersion.

What is the distortion type on the CIL231 fisheye lens?

The CIL231 uses -10% F-theta distortion. That projection spreads angular resolution more evenly across the frame than an equidistant fisheye, which helps panoramic stitching and surround-view work.

Which M12 lens holders are compatible with the CIL231?

The Commonlands CLA019-LCP holder (8-13mm standoff) is one compatible mounting option. The lens also fits standard M12x0.5 mounts from e-con Systems, Allied Vision, FLIR, iDS, The Imaging Source, and Basler.

Does the CIL231 3mm M12 fisheye lens ship same day from the US?

Yes, in-stock CIL231 lenses ship same day from San Diego, California for orders placed before 12 PM PST. Over 60 units of each CIL231 variant are currently in stock.

The CIL231 is a 3.1mm M12 fisheye lens with 190° field of view on 1/1.8 inch sensors such as the IMX728 and AR0823. It uses a fixed F/1.9 aperture, all-glass optics in an aluminum barrel, IP67 sealing, and a 12g package, so it fits outdoor or washdown systems that still need high pixel density.

The lens uses -10% F-theta distortion. That projection spreads angular resolution more evenly across the frame than a standard equidistant fisheye, which helps when stitched panoramic views or surround-view systems still need useful edge detail instead of wasting pixels in the center. The lens resolves 12MP+ at 1.55μm pixel pitch across the full 190° field. You can check sensor coverage with our field of view calculator at field of view calculator

All-glass elements and BBAR coating on the first surface help control flare. The sealed M12A metal barrel handles dust, rain, and washdown environments without needing a second enclosure around the lens. Order CIL231-F1.9-M12A650 with the 650nm IR cut filter for daylight imaging, or CIL231-F1.9-M12ANIR for NIR-sensitive applications.

The lens mounts to Commonlands CLA019-LCP holders with 8-13mm standoff. It is mechanically compatible with e-con Systems, Allied Vision Alvium, FLIR Blackfly S, iDS uEye XLS, The Imaging Source, and Basler Dart S-mount board cameras.

Commonlands ships this lens same day from San Diego for orders placed before 12 PM PST. Contact our optical engineers if you need volume pricing or STP files for CAD integration.
