200° Ultra-Miniature Fisheye M12 Lens for Compact 5MP Applications
200°@4.5mm 미니어안 M12 렌즈

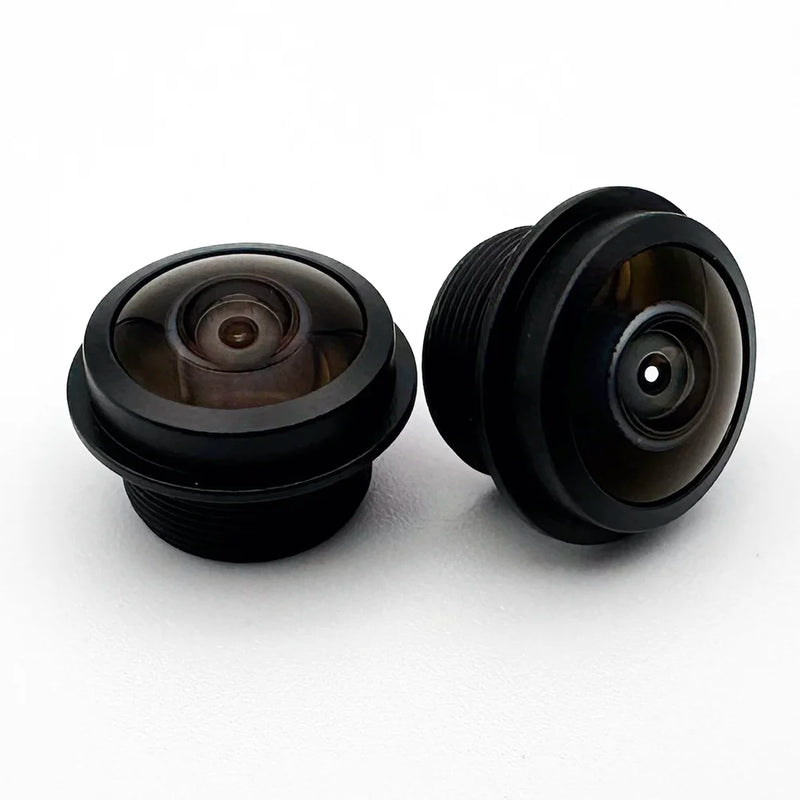

The CIL914 is a tiny fisheye lens with 200°@4.5mm image circle, for up to 5MP 1/2" sensors. The 13.2mm TTL, all-glass all-metal, and IP67 rating makes this one the smallest high-performance fisheyes on the market.
In stock — orders before 12 PM PST ship same day
렌즈 기능
초소형 폼 팩터
13.2mm TTL for ultra-compact miniature applications
IP67-Rated
Ingress protected for exterior-exposed robotics and automotive applications
All-Glass Design
All-glass optical design for thermal stability across temperature cycles
광학 및 기계 사양 테이블
| 렌즈 파라미터 | 성능 상세 정보 |
|---|---|
| 부품 번호 | CIL914 |
| EFL | 1.4 |
| F# | 2.4 |
| 해상도 | 4-5MP, 2.4μm pixel pitch |
| 시야각 | 200° — Calculate FoV for your sensor |
| 이미지 서클 | 4.6mm |
| 왜곡 | -8% (F-Θ) |
| 무게 | 3.4g |
| IR 컷오프 필터 | 650nm |
| 구조 | All Glass, Metal |
기계적 변형들
| 변형 | 설명 |
|---|---|
| M12A | 렌즈 1 표면 1, 금속 캡+배럴의 BBAR |
기계 레이아웃
카메라 기계적 호환성 표*
| 카메라/마운트 | 호환성 |
|---|---|
| Commonlands CLA021 | CLA021 |
| e-con Systems S-Mount | Standard mount |
| Allied Vision Alvium S-Mount | 아니요 |
| FLIR Blackfly S 보드 | 아니요 |
| iDS uEye LE | Rev1.1: 아니요, Rev1.2: 아니요 |
| The Imaging Source M12 | 아니요 |
| Basler Dart S-마운트 | 아니요 |
*카메라 제조업체에서 제공하는 표준 M12x0.5 렌즈 마운트를 전제로 한 기계적 호환성입니다. 광학 호환성은 별도로 확인하시기 바랍니다.
Frequently asked questions
What sensors is the CIL914 200° M12 fisheye lens compatible with?
The CIL914 supports sensors from 1/4\" to 1/2\", including 5MP sensors like the AR0522 with 2.4μm pixels. The 4.6mm image circle covers these formats at 200° FoV.
What is the image circle of the CIL914 4.5mm fisheye M12 lens?
The CIL914 has a 4.6mm image circle. The 200° FoV produces a circular fisheye on 1/2\" sensors and fills the frame diagonal on smaller formats.
Does the CIL914 come with an IR cut filter option?
Yes. The CIL914-F2.4-M12A650 includes a 650nm IR cut filter. The CIL914-F2.4-M12ANIR ships without a filter for NIR or 850nm LED illumination applications.
What is the TTL and weight of the CIL914 M12 fisheye lens?
The CIL914 has a 13.2mm TTL and weighs 3.4g, making it one of the smallest all-glass 200° fisheye M12 lenses on the market.
Are STP files and mechanical drawings available for the CIL914?
Yes — STP files and mechanical drawings are available for the CIL914. Contact our US engineering team or submit a request from the product page.
Does Commonlands offer volume pricing on the CIL914 M12 fisheye?
Yes. Volume pricing on the CIL914 starts at 50 units. Contact us with your quantity and lead time requirements for a quote.
