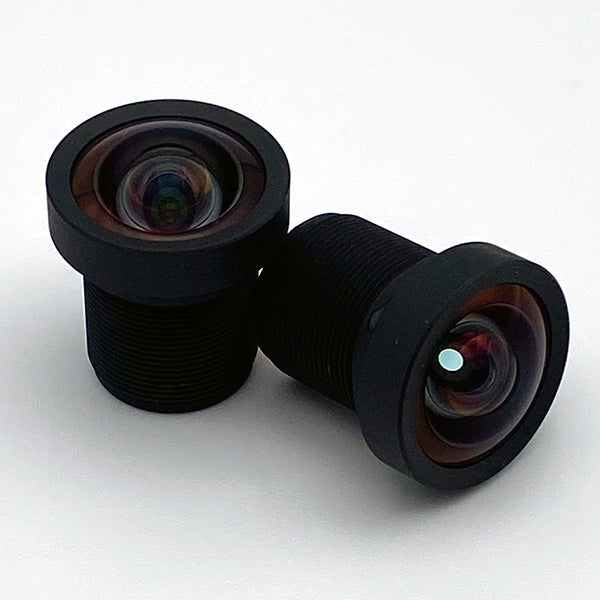

IMX178 및 IMX265와 같은 최대 1/1.8" 센서용 2.7mm 광각 무왜곡 렌즈
왜곡률 최소화 2.7mm M12 렌즈
In stock — orders before 12 PM PST ship same day
렌즈 기능
열 안정성
Sony IMX178에 적합한 광학 해상도.
침투 방지
Low Distortion Wide-Angle up to 1/1.8\" format type.
광학 및 기계 사양 테이블
| 렌즈 파라미터 | 성능 상세 정보 |
|---|---|
| 부품 번호 | CIL027 |
| EFL | 2.7 |
| F# | 2.8 |
| 해상도 | 8MP, 2.2μm |
| 시야각 | 100° @ 6.3mm — Calculate FoV for your sensor |
| 이미지 서클 | 7.4mm (usable) 9.0mm (max) |
| 왜곡 | -1.5% TV (4:3) |
| 무게 | 6.2g |
| IR 컷오프 필터 | P/N (포함): CIL027-F2.8-M12A650 P/N (미포함): CIL027-F2.8-M12ANIR |
| 구조 | 5G2P, AL6061 |
기계적 변형들
| 변형 | 설명 |
|---|---|
| M12A | 보호 등급 없음, 렌즈 1의 표면 1에 BBAR 코팅, AL6061 캡+배럴 |
기계 레이아웃
카메라 기계적 호환성 표*
| 카메라/마운트 | 호환성 |
|---|---|
| Commonlands CLA018 | — |
| e-con Systems S-Mount | — |
| Allied Vision Alvium S-Mount | — |
| FLIR Blackfly S 보드 | — |
| iDS uEye XLS | — |
| The Imaging Source M12 | — |
| Basler Dart S-마운트 | — |
*카메라 제조업체에서 제공하는 표준 M12x0.5 렌즈 마운트를 전제로 한 기계적 호환성입니다. 광학 호환성은 별도로 확인하시기 바랍니다.
Frequently asked questions
What sensors work with the CIL027 2.7mm M12 lens?
The CIL027 resolves 8MP at 2.2μm pixel pitch and covers sensors up to 1/1.8 inch format. The Sony IMX178 and IMX265 are ideal matches. Use our field of view calculator at https://commonlands.com/pages/camera-field-of-view-calculator to check the FoV on your specific sensor.
How much distortion does the CIL027 have?
The CIL027 has -1.5% TV distortion measured at 4:3 aspect ratio. That is low enough for barcode reading, dimensional measurement, and machine vision inspection without software distortion correction.
What is the CIL027 field of view on a 1/2.3 inch sensor?
100 degrees horizontal on a 1/2.3 inch sensor at the 6.3mm image circle. The usable image circle extends to 7.4mm, with 9.0mm maximum.
What lens holders are compatible with the CIL027?
The recommended mount is the Commonlands CLA018-LCP with 18mm hole spacing. For e-con Systems boards, use a 9–13mm tall holder. FLIR Blackfly S, Allied Vision Alvium, iDS uEye XLS, TIS, and Basler Dart are all mechanically compatible.
Does the CIL027 come with an IR cut filter?
Two options: CIL027-F2.8-M12A650 includes a 650nm IR cut filter for daylight use. CIL027-F2.8-M12ANIR ships without a filter for NIR-sensitive applications.
Does the CIL027 ship same day from the United States?
Yes. Commonlands ships all in-stock lenses same day from San Diego, California for orders placed before 12 PM PST. The CIL027 is 100% MTF tested before shipping.
