3mm M12 Lens for up to 1/2.5" Sensors such as ISX031 and AR0234

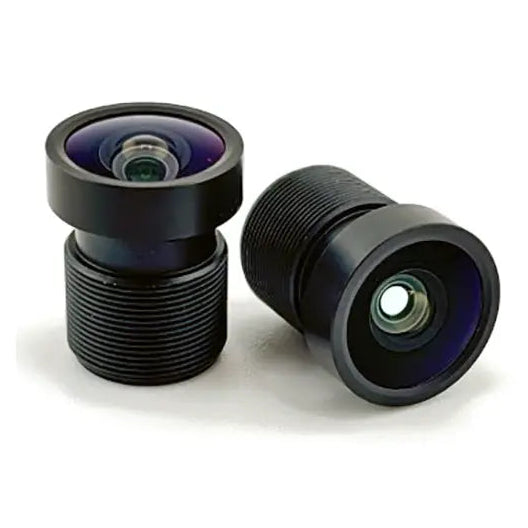

IP69K 3.3mm M12 Lens
The CIL384 is an IP69K automotive grade M12 lens for up to 3MP 1/2.5" sensors. The fast F/1.6 makes this lens great for ADAS applications.
In stock — orders before 12 PM PST ship same day
렌즈 기능
낮은 F/##
All-glass all-metal design, with F/1.6 for great low light and frame rate.
광학 및 기계 사양 테이블
| 렌즈 파라미터 | 성능 상세 정보 |
|---|---|
| 부품 번호 | CIL384 |
| EFL | 3.34 |
| F# | 1.6 |
| 해상도 | 2MP (3.45um) |
| 시야각 | 116° @ 6.7mm image circle — Calculate FoV for your sensor |
| 이미지 서클 | 6.7mm |
| 왜곡 | -36% |
| 무게 | 5g |
| IR 컷오프 필터 | P/N With: CIL384-F1.6-M12A650 P/N Without: CIL384-F1.6-M12ANIR |
| 구조 | 7G |
기계적 변형들
| 변형 | 설명 |
|---|---|
| M12A | IP69K, 렌즈 1 면 1에 BBAR 적용, AL6061 캡+버렐 |
기계 레이아웃
카메라 기계적 호환성 표*
| 카메라/마운트 | 호환성 |
|---|---|
| Commonlands CLA019 | CLA019 |
| e-con Systems S-Mount | 10mm - 12mm tall holder |
| Allied Vision Alvium S-Mount | 예 |
| FLIR Blackfly S 보드 | 예 |
| iDS uEye LE | Rev1.1: 예, Rev1.2: 예 |
| The Imaging Source M12 | 예 |
| Basler Dart S-마운트 | 예 |
*카메라 제조업체에서 제공하는 표준 M12x0.5 렌즈 마운트를 전제로 한 기계적 호환성입니다. 광학 호환성은 별도로 확인하시기 바랍니다.
Frequently asked questions
What sensors does the CIL384 3mm M12 lens support?
The CIL384 is built for 1/2.5″ sensors including the Sony ISX031 and ON Semiconductor AR0234. It resolves 2MP at 3.45μm pixel pitch across a 6.7mm image circle.
Is the CIL384 IP69K rated for automotive exterior applications?
Yes. The CIL384 carries an IP69K rating with a sealed all-glass, all-metal barrel that is meant for high-pressure washdown, dust ingress, and automotive temperature cycling.
How much distortion does the CIL384 have at -36%?
The -36% barrel distortion is significant, but that is normal for a 3mm-class automotive wide-angle. Surround-view and ADAS systems usually correct it in software, and you should look at CIL329 or CIL327 if lower distortion matters more than coverage.

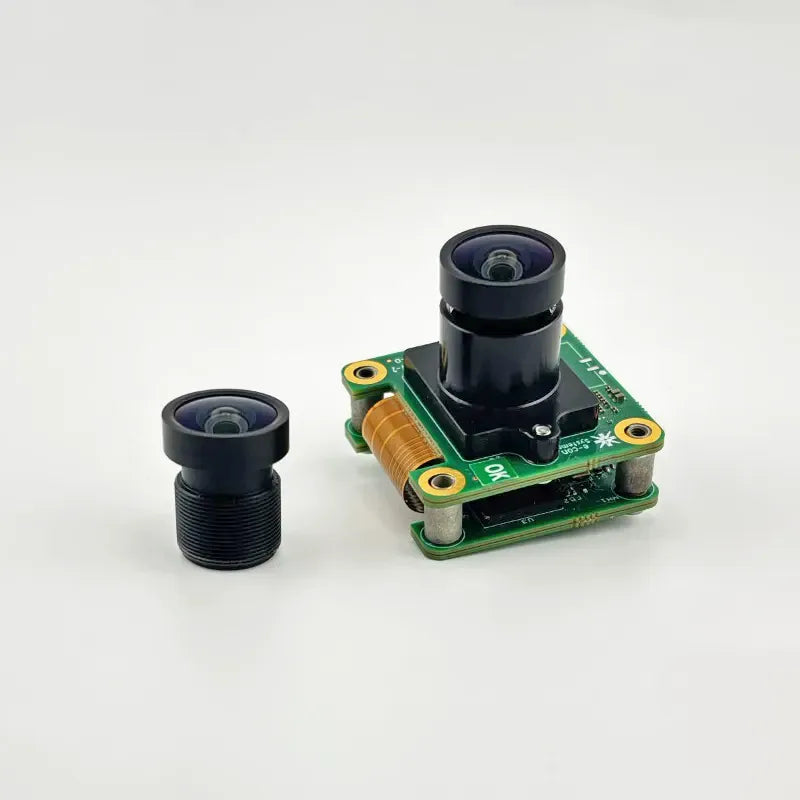

What cameras are mechanically compatible with the CIL384?
FLIR Blackfly S, Allied Vision Alvium, iDS uEye LE, The Imaging Source M12, and Basler Dart S-mount cameras all mount the CIL384 directly. works with the Commonlands CLA019 holder and other compatible mounts.
Does the CIL384 ship same day from the US?
Yes. Orders placed before 12 PM PST ship same day from the San Diego warehouse. Contact Commonlands for production pricing.
Can the CIL384 be used for surround-view ADAS camera systems?
Yes. The 116° FoV, IP69K rating, F/1.6 aperture, and ISX031 or AR0234 compatibility make the CIL384 a strong fit for surround-view, parking assist, and rear-view modules.
