Automotive 5mm M12 lens for up to 5MP 1/1.8" sensors

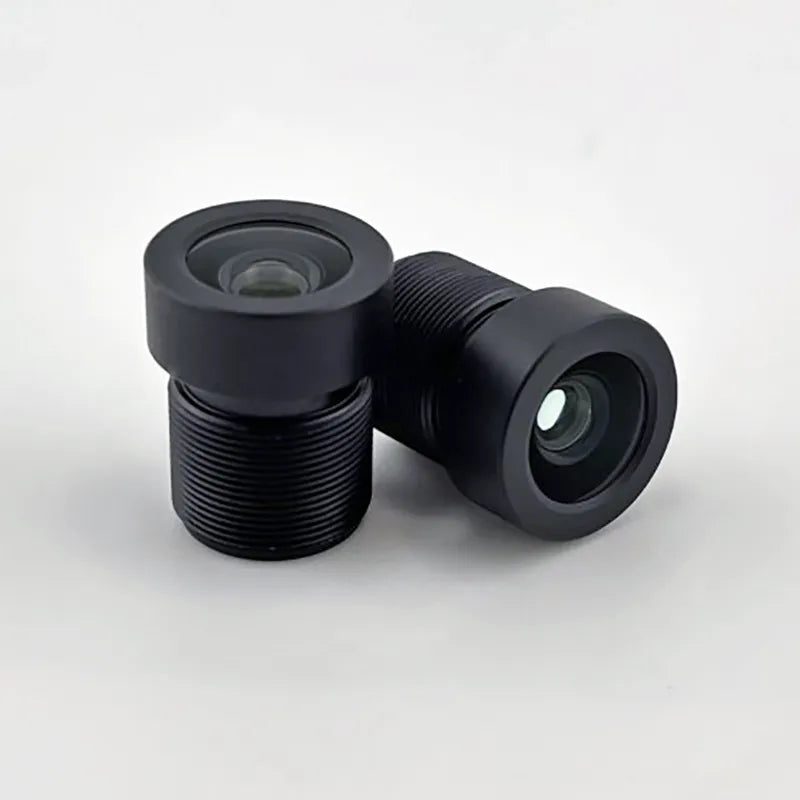

The CIL353 is an automotive-grade 5.3mm M12 lens for 1/1.8" sensors, with a nominal lens rating of 6MP at 2.0μm pixel pitch. It gives a 69° field of view at the 6.2mm image circle with an 8mm designed image circle, so it fits embedded cameras that need moderate wide coverage without moving into fisheye territory.

The lens uses all-glass optics in a metal barrel and weighs 5g. The M12A mechanical variant is IP6K9K rated with a hydrophobic coating on the first lens surface and an AL6061 cap and barrel. Use it when the camera may see dust, spray, washdown, or road exposure.

The listed part numbers are CIL353-F2.0-M12A660 with a 660nm IRC filter and CIL353-F2.0-M12ANIR without a filter. The F/2.0 aperture is useful when you need more light than an F/2.8 lens but still want enough depth of field for embedded vision work. Rectilinear distortion is -9% at 4.8mm image circle, so dimensional measurement should be calibrated.

Mechanically, the lens uses an M12×0.5 thread. The Commonlands CLA018 holder is one compatible mount, and the page also lists e-con Systems S-Mount with a 9mm-13mm holder, Allied Vision Alvium, FLIR Blackfly S Board, iDS uEye XLS, The Imaging Source M12, and Basler Dart S-Mount compatibility. In-stock orders placed before 12 PM PST ship same day from San Diego.
