IP67 8mm M12 Lens for up to 1/2.4" sensors such as AR0234, IMX462, AR02304
침투 방지 7.8mm M12 렌즈

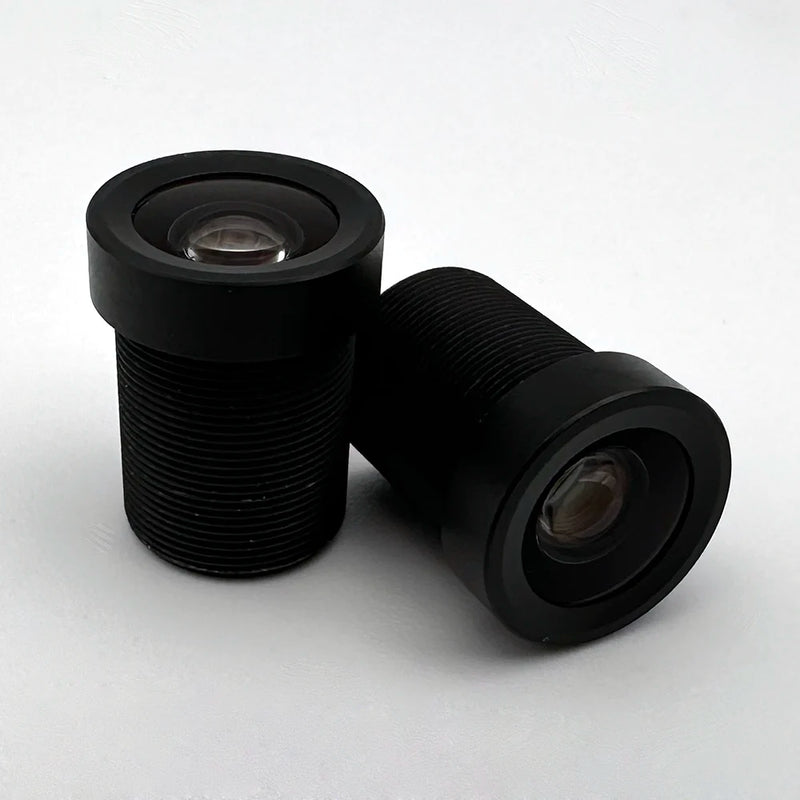

The CIL079 is an automotive grade 8mm M12 Lens which is suitable for up to 3MP 1/2.4" sensors. This all-glass lens is IP67 and is optimized for thermal stability + stray light, making it great for exposed applications.
In stock — orders before 12 PM PST ship same day
렌즈 기능
비열화
Compatible with operational temperatures from -30C to 75C.
IP67 등급
가장 혹독한 환경을 위한 IP67 등급
광학 및 기계 사양 테이블
| 렌즈 파라미터 | 성능 상세 정보 |
|---|---|
| 부품 번호 | CIL079 |
| EFL | 7.85 |
| F# | 2.0 |
| 해상도 | 3MP, 2.1μm |
| 시야각 | 44° @ 6.0mm image circle — Calculate FoV for your sensor |
| 왜곡 | -3% TV |
| 무게 | 6g |
| IR 컷오프 필터 | P/N With: CIL079-F2.0-M12A650 P/N Without: CIL079-F2.0-M12ANIR |
| 구조 | 알루미늄 배럴을 사용한 All Glass |
기계적 변형들
| 변형 | 설명 |
|---|---|
| M12A | IP67, 렌즈 1 표면 1에 BBAR 코팅, AL6061 캡+배럴 |
기계 레이아웃
카메라 기계적 호환성 표*
| 카메라/마운트 | 호환성 |
|---|---|
| Commonlands CLA019 | CLA019 |
| e-con Systems S-Mount | 9mm-13mm 높이 홀더 |
| Allied Vision Alvium S-Mount | 예 |
| FLIR Blackfly S 보드 | 예 |
| iDS uEye LE | Rev1.1: 예, Rev1.2: 예 |
| The Imaging Source M12 | 예 |
| Basler Dart S-마운트 | 예 |
*카메라 제조업체에서 제공하는 표준 M12x0.5 렌즈 마운트를 전제로 한 기계적 호환성입니다. 광학 호환성은 별도로 확인하시기 바랍니다.
Frequently asked questions
What sensors does the CIL079 8mm M12 lens support?
The CIL079 supports 1/2.4 inch sensors up to 3MP with 2.1μm pixel pitch. Sensors like the ON Semiconductor AR0234 and Sony IMX462 are good matches, and the 7.4mm image circle covers those formats with margin.
Is the CIL079 IP67 rated for outdoor use?
Yes. The CIL079 M12A variant is IP67 rated with a sealed aluminum barrel, so it handles rain, dust, and washdown environments.
What is the distortion on the CIL079 8mm M12 lens?
The CIL079 has -3% TV distortion at the 6.0mm image circle. That is acceptable for navigation and monitoring, but measurement applications should plan on software correction.
Which cameras are mechanically compatible with the CIL079?
The CIL079 fits FLIR Blackfly S board cameras, Allied Vision Alvium S-Mount, Basler Dart S-Mount, iDS uEye LE, and The Imaging Source M12 cameras. e-con Systems boards need a 9-13mm tall holder, and a Commonlands CLA019 lens holder is the standard choice for board-level mounting.
Does the CIL079 work at extreme temperatures?
Yes. The CIL079 is athermalized for operation from -30°C to 75°C, so the all-glass and aluminum construction keeps focus stable across that range.
Does Commonlands ship the CIL079 same day from the US?
Yes. Commonlands ships in-stock lenses same day from San Diego for orders placed before 12 PM PST.
