머신 비전 카메라용 CS 마운트 렌즈

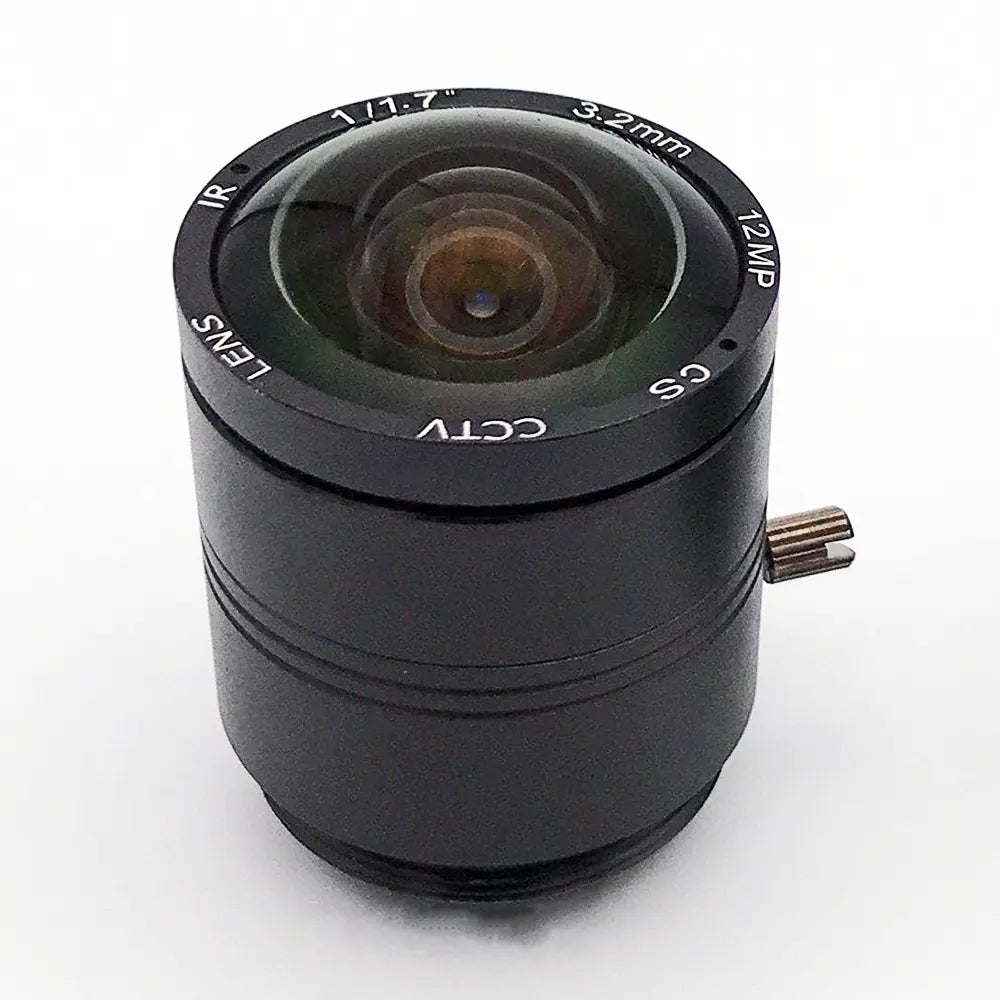

CS-mount lenses are a practical starting point for early stage vision prototypes, because CS is the native mount on common development cameras and the lenses drop straight on. Whether CS is right for your build depends on your sensor format, package envelope, focus and iris needs, budget, and the mount you plan to ship in production. Our lenses range from 2.5mm to 8mm EFL and include wide-angle and fisheye designs.

CS 렌즈는 머신 비전 및 감시/CCTV 카메라에서 흔히 사용되며, 이러한 분야에서는 임베디드 M12 시스템에 비해 패키지 크기에 대한 제약이 일반적으로 덜합니다. 또한 당사는 다양한 이미지 센서를 지원하기 위해 최대 1.2" 크기의 센서 포맷을 지원하는 다수의 C-마운트 렌즈를 제공하고 있습니다.

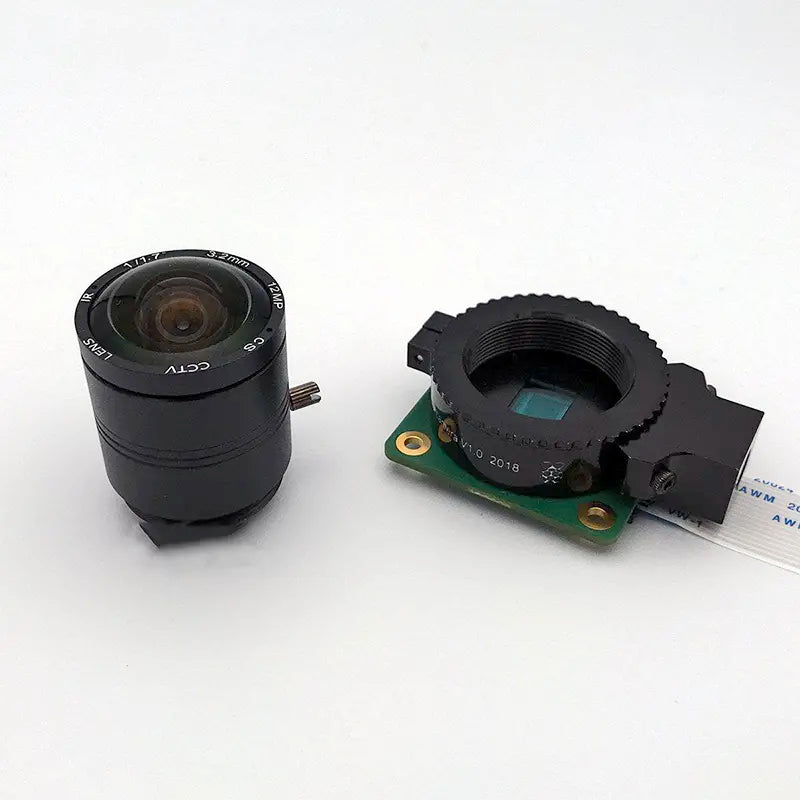

These lenses thread onto a CS-mount camera such as the C/CS version of the Raspberry Pi High Quality Camera, which settles the mechanical half of the question. Before ordering, confirm the image circle covers your sensor diagonal, and check rear-element clearance in the camera throat, clearance around any sensor filter, the focus range you need, and how the lens performs in your wavelength band. For space constrained applications, we recommend considering an M12 lens with a CS mount adapter instead. Read our Lens Mount article to learn more about the difference between a CS and C Mount Lens.
