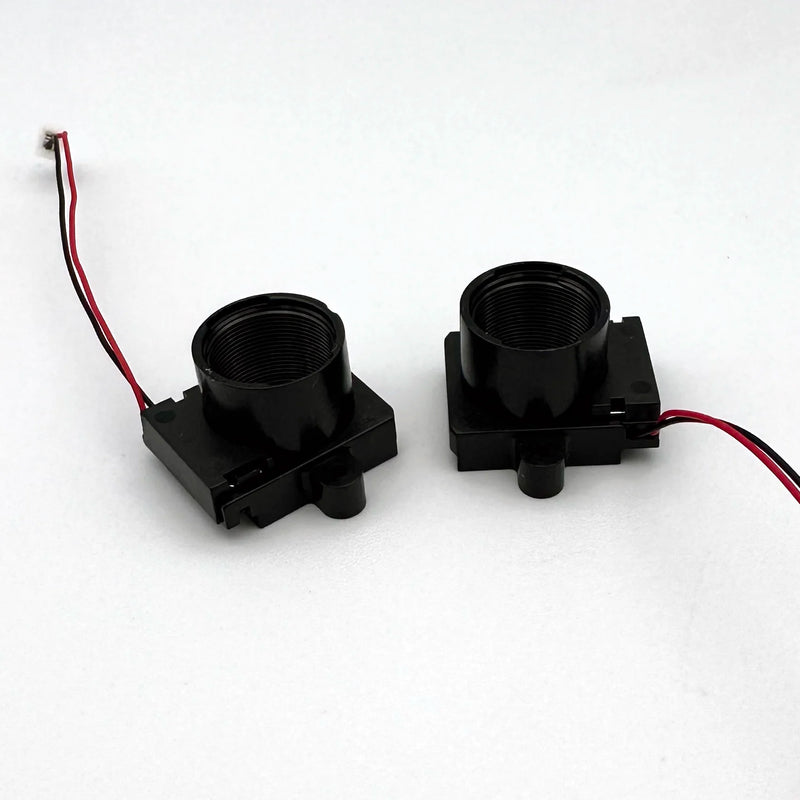

S-마운트 렌즈/M12 렌즈용 IR 차단 필터 스위처
IR Cut-Off Filter Switcher, 20mm Spacing, 14mm Height, 0.21mm/0.21mm
In stock — orders before 12 PM PST ship same day
광학 및 기계 사양 테이블
| 렌즈 파라미터 | 성능 상세 정보 |
|---|---|
| 부품 번호 | CLA214 |
기계 레이아웃
Frequently asked questions
What is the IR cutoff wavelength of the CLA214-ICR?
The CLA214-ICR uses a D263T glass substrate with IR cut-off at T=50% at 645nm ±10nm. The IRC filter thickness is 0.21mm, and the dummy glass matches it at 0.21mm.
How do you control the CLA214-ICR IR cut switcher?
You control the CLA214-ICR with an H-bridge circuit and a 3.3V-5.0V pulse for 100-500ms. Forward polarity on the 2-pin 1.25mm JST connector opens the filter, and reverse polarity closes it.
What is the CLA214-ICR lifecycle rating?
The minimum rated lifecycle is 50,000 switching cycles. Production units often exceed 100,000 cycles, but Commonlands guarantees the 50,000 minimum.
What are the dimensions of the CLA214-ICR?
The CLA214-ICR is 14mm tall and uses 20mm mounting hole spacing. That profile fits many embedded camera stacks used for day and night switching.
Does the CLA214-ICR ship same day from the US?
Yes. Orders placed before 12 PM PST ship same day from our San Diego warehouse.
Which M12 lenses are compatible with the CLA214-ICR?
The CLA214-ICR works with any Commonlands M12 lens ordered without an IRC filter in the NIR variant. Pair it with lenses such as the CIL078-F2.0-M12ANI when you need switchable day and night operation.
