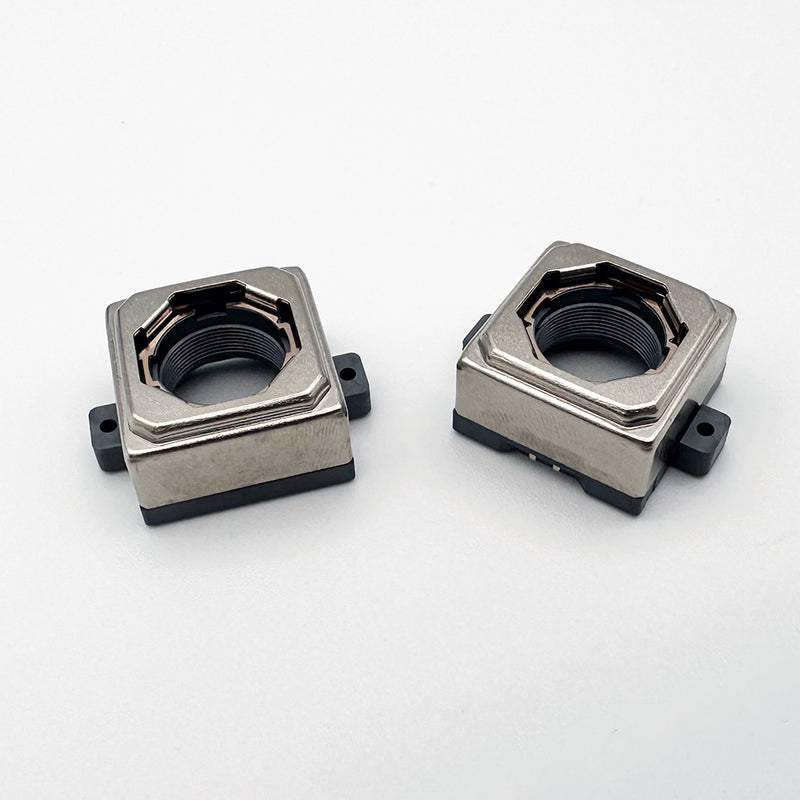

M12 Voice-Coil Auto-focus Motor up to 7g, 400um

The CLA321-VCM is a voice-coil auto-focus motor for M12 lenses up to 7g. Its full stroke is 400μm, which is enough travel for most S-mount focus adjustments on embedded vision cameras. Rated current is 120mA, and the absolute maximum is 150mA, so driver sizing is straightforward.

The terminal resistance is 37Ω ±5Ω at 23°C. Starting current is 45-65mA, and sensitivity runs from 5 to 40 μm/mA depending on lens weight and orientation. With a 5g lens in vertical orientation, the motor reaches 600μm+ stroke at 100mA. That range matters because real focus travel depends as much on the mechanics as the coil.

The motor uses a magnetic design with red (+) and black (−) leadwires. Positive voltage on the red wire moves the lens away from the sensor. Insulation resistance exceeds 1MΩ at DC 50V, and Commonlands life-tested the unit to 500,000 cycles at 23°C.

Commonlands does not currently supply software or firmware drivers for the CLA321. We recommend a Dongwoon DW9714 or Texas Instruments DRV201 driver IC. If you want a turnkey setup with the driver and USB adapter already handled, look at the ultrasonic M12 lens focus motor, the CLA322.

Orders placed before 12 PM PST ship same day from San Diego. Contact engineering@commonlands.com for volume pricing or integration support.
